Professional Embedded Parts Catalog & Technical Specifications
As a leading exporter of construction hardware, we provide a comprehensive range of embedded parts designed for seamless integration into concrete structures. Our product line covers everything from light-duty facade fixings to heavy-duty industrial foundation anchors. Below you will find our standard model specifications. Note: All models can be customized regarding plate thickness, hole diameter, and stud length to meet your engineering requirements.

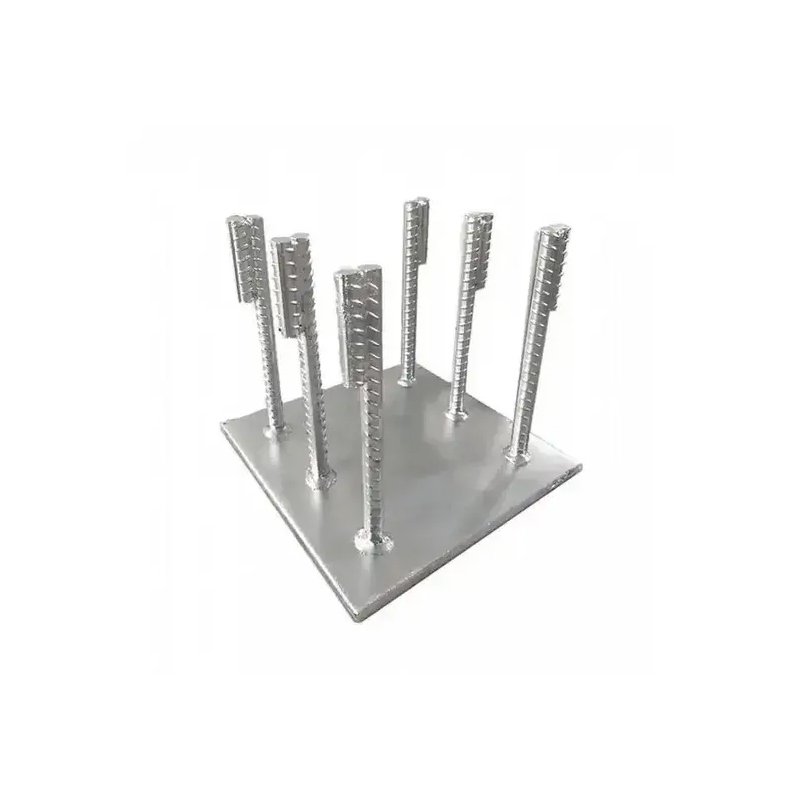

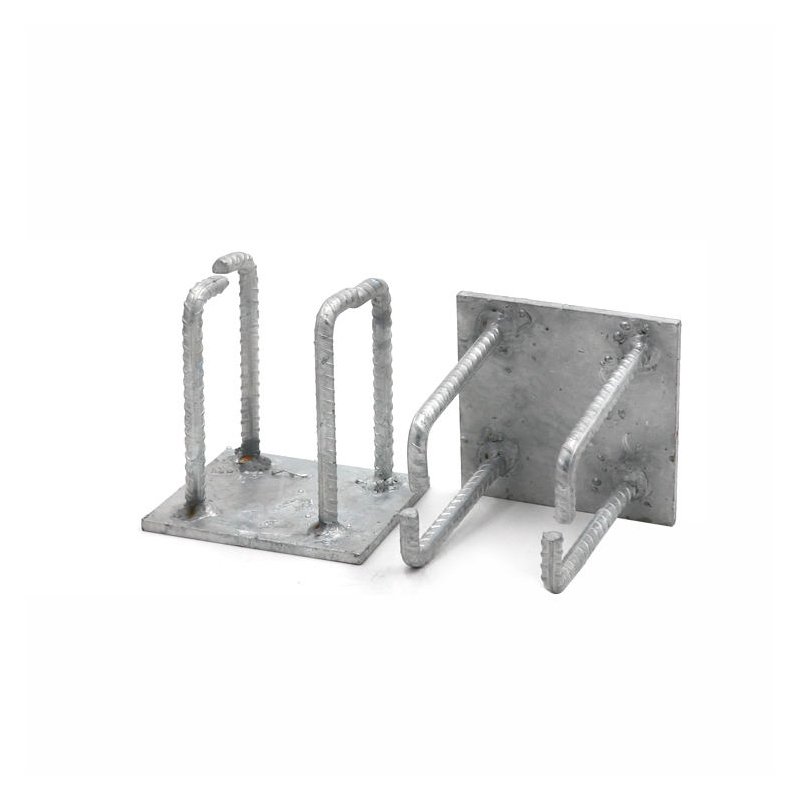

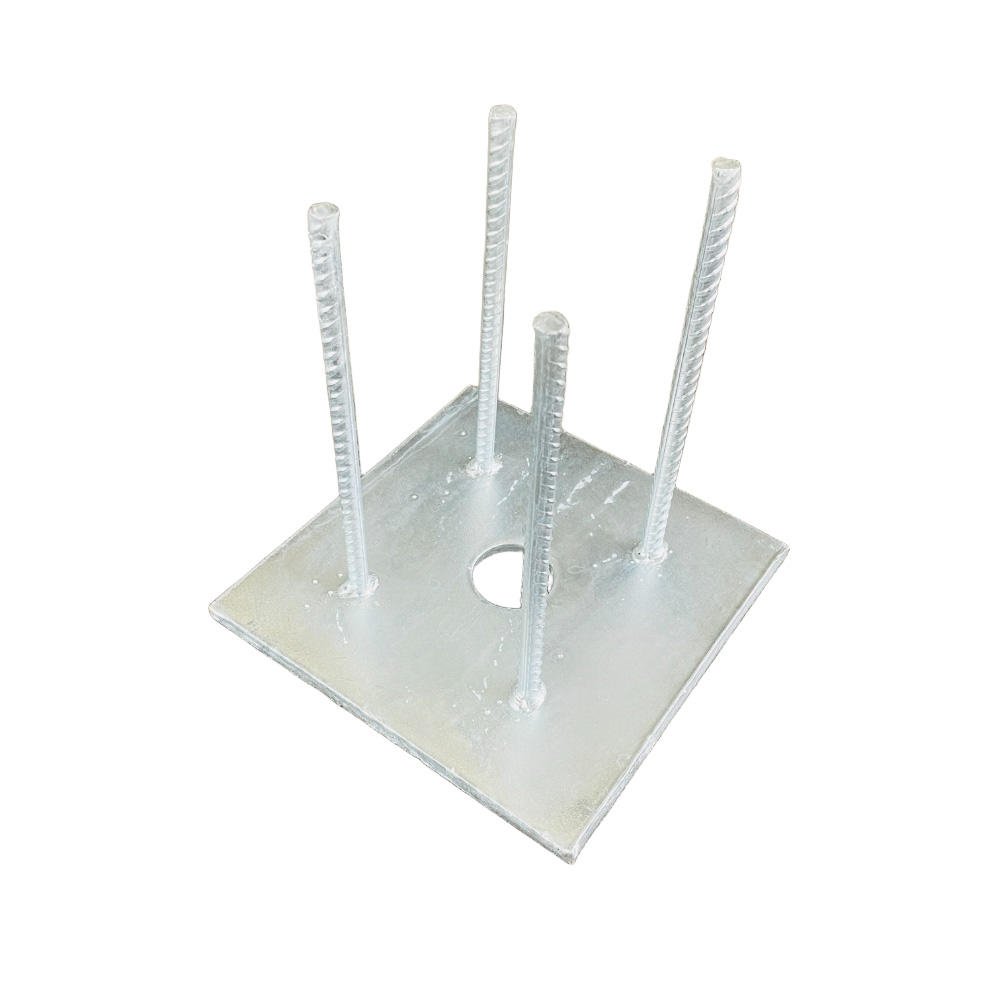

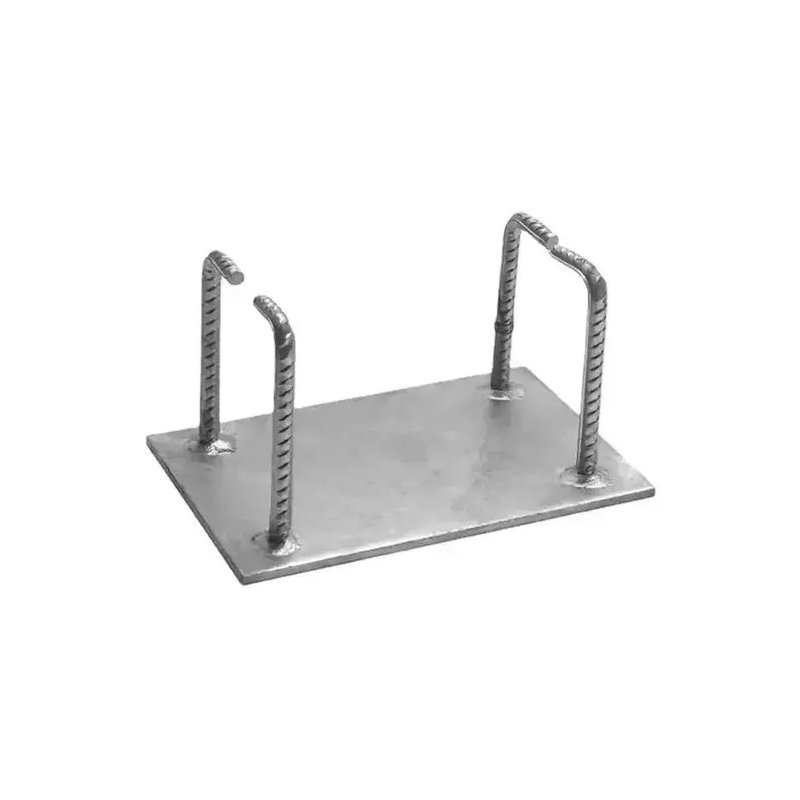

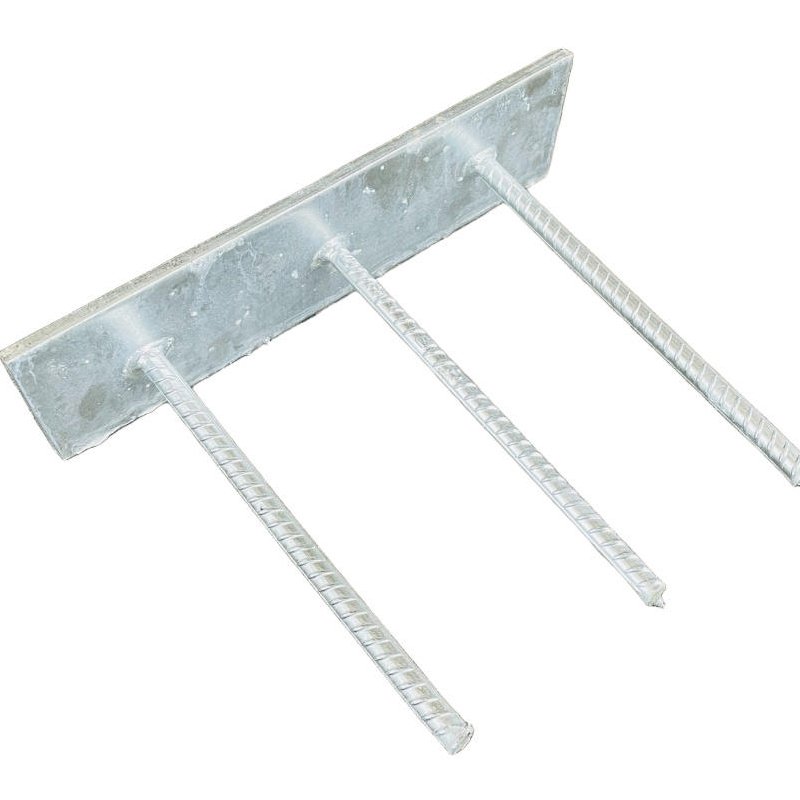

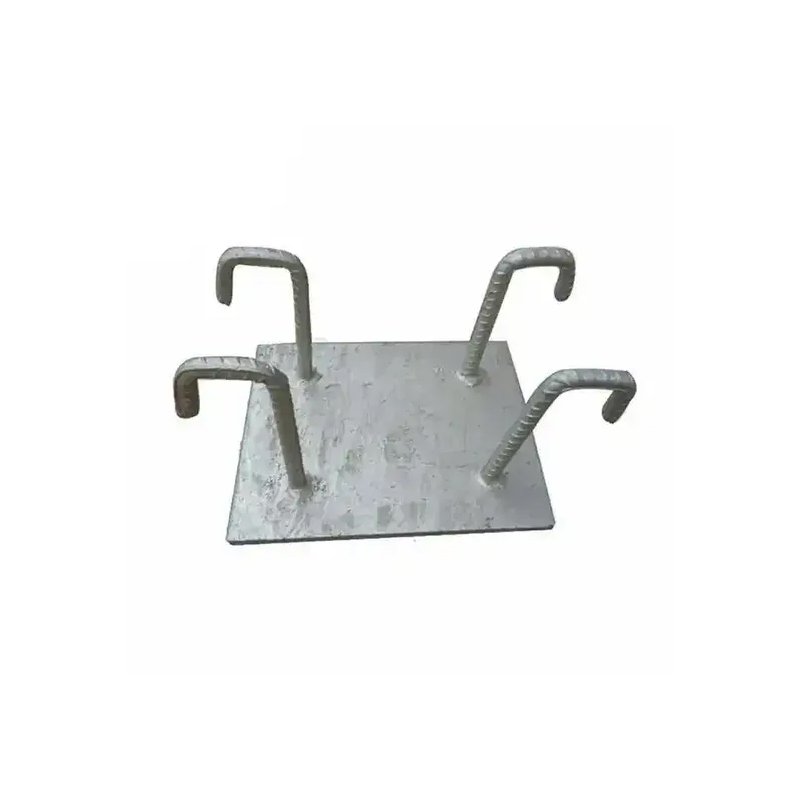

Embedded Parts Standard Product Model & Dimensions
The following table lists our high-demand models exported to global markets. Select the model that best fits your load requirements.
| Model No. | Plate Size (mm) | Thickness (mm) | Stud Qty (pcs) | Stud Size (D*L) | Load Capacity |
|---|---|---|---|---|---|
| EP-S2020 | 200 x 200 | 8 – 12 | 4 | Φ16 x 200 | Light Duty |
| EP-M3030 | 300 x 300 | 12 – 20 | 4 / 6 | Φ20 x 300 | Medium Duty |
| EP-H4040 | 400 x 400 | 20 – 30 | 8 | Φ25 x 400 | Heavy Duty |
| EP-XH6060 | 600 x 600 | 30 – 50+ | 12+ | Φ32 x 600 | Extra Heavy |
| EP-CUSTOM | Per Drawing | Up to 100 | Custom | Custom | Customized |
Advanced Manufacturing Process for Guaranteed Performance
Our embedded parts are manufactured through a multi-step quality-controlled process. We utilize high-grade carbon steel (Q235B/Q355B) as the base material. The plates are precision-cut using CNC fiber laser machines, ensuring that all hole positions are accurate to within ±0.5mm. This level of precision is vital for the fast alignment of steel columns and secondary structures on-site.
The attachment of the anchor studs or rebar is performed via submerged arc welding or robotic CO2 shielded welding. This ensures deep penetration and a strong fusion zone, which is essential to resist the shear and pull-out forces that occur during the lifespan of the building. To combat environmental degradation, our parts undergo Hot-Dip Galvanizing according to ISO 1461, providing a robust zinc coating that prevents oxidation in even the most humid or saline conditions.
Embedded Parts Applications Across Global Industries
Our product range serves a diverse set of applications:
- Infrastructure: Bridge piers, highway sound barriers, and tunnel support systems.

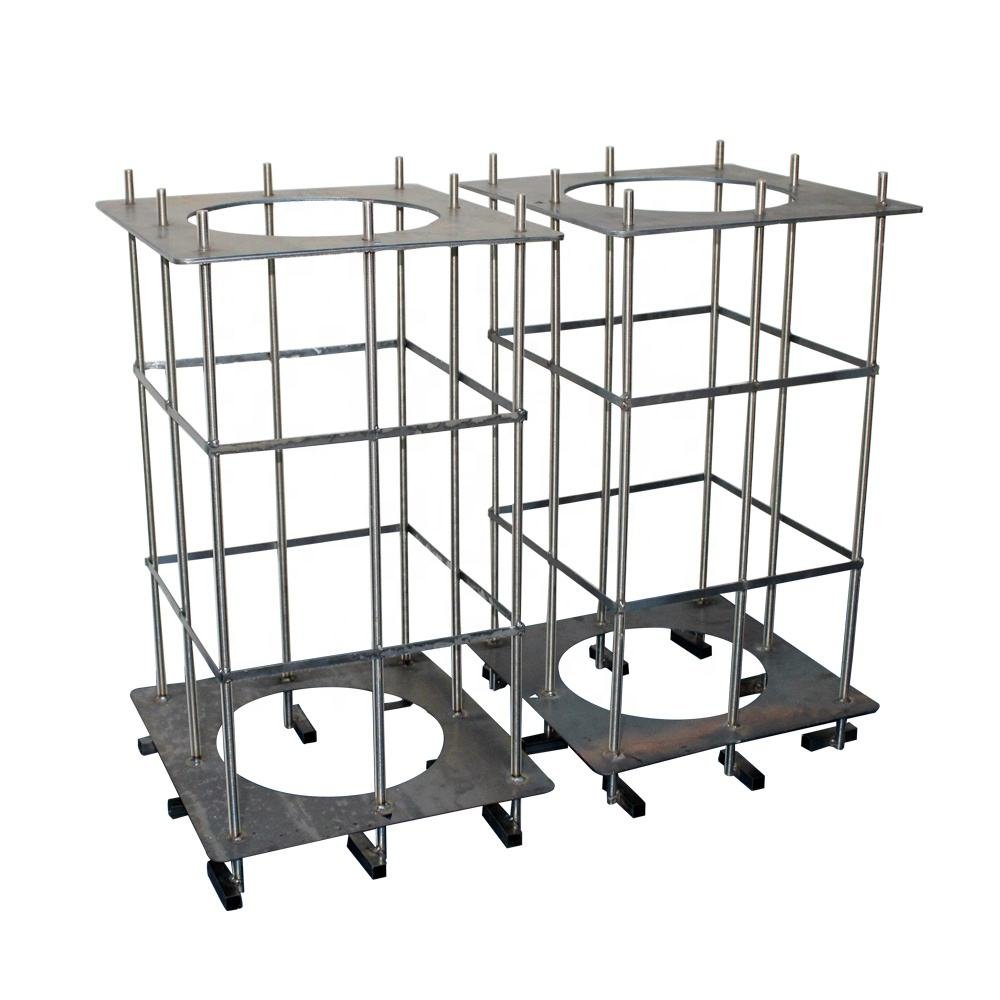

- Renewable Energy: Wind turbine base rings and solar mounting foundations.
- Commercial Real Estate: Glass curtain wall fixings, elevator shaft guide rails, and HVAC equipment supports.
- Industrial Facilities: Heavy machinery mounting and warehouse racking systems.
Frequently Asked Questions (FAQ)
Q: What is the maximum thickness you can process?
A: We can laser-cut and process steel plates up to 100mm in thickness for heavy industrial applications.
Q: Do you offer MTC (Mill Test Certificates) for every batch?
A: Yes, we provide full material traceability with 3.1 MTC, ensuring you know the exact chemical and mechanical properties of the steel.
Q: Can these parts be used in seismic-prone areas?
A: Absolutely. Our heavy-duty models (H and XH series) are designed with deep-anchor studs that meet international seismic design requirements.
Q: How do you handle shipping to Europe/North America?
A: We use fumigated wooden crates or steel pallets with anti-rust wrapping to ensure the product arrives in perfect condition.
Get a Custom Quote in 12 Hours
Whether you need standard EP-Series models or a bespoke design, our engineering team is ready to assist.
ISO 9001:2015 Certified | Global Logistics Support | OEM Drawing Support
