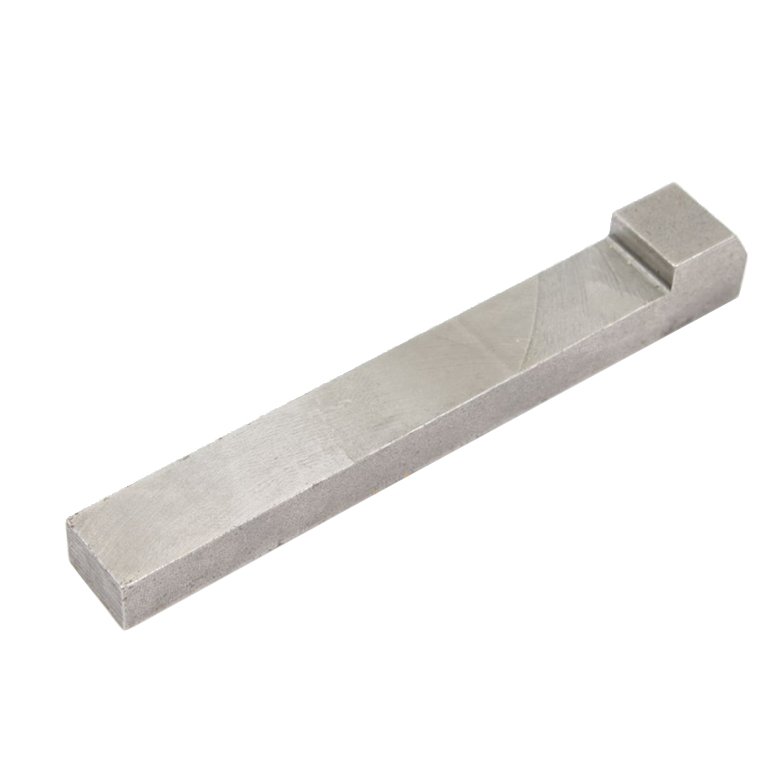

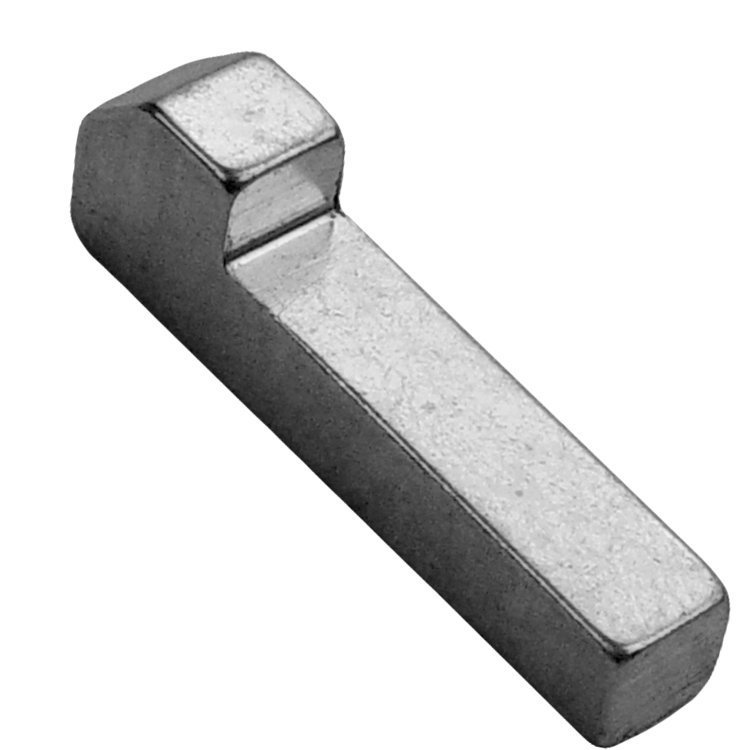

High-Quality Gib Head Keys (DIN 6887 / ISO 2492)
Gib Head Keys are a specialized type of taper key featuring a raised “head” (the gib) on one end. This unique design allows for easy installation and, more importantly, easy removal even in tight spaces where the other end of the shaft is inaccessible. They are primarily used to secure gears, pulleys, and hubs onto shafts in heavy machinery.
Technical Specifications
- Standard: Manufactured according to DIN 6887, ISO 2492 standards.

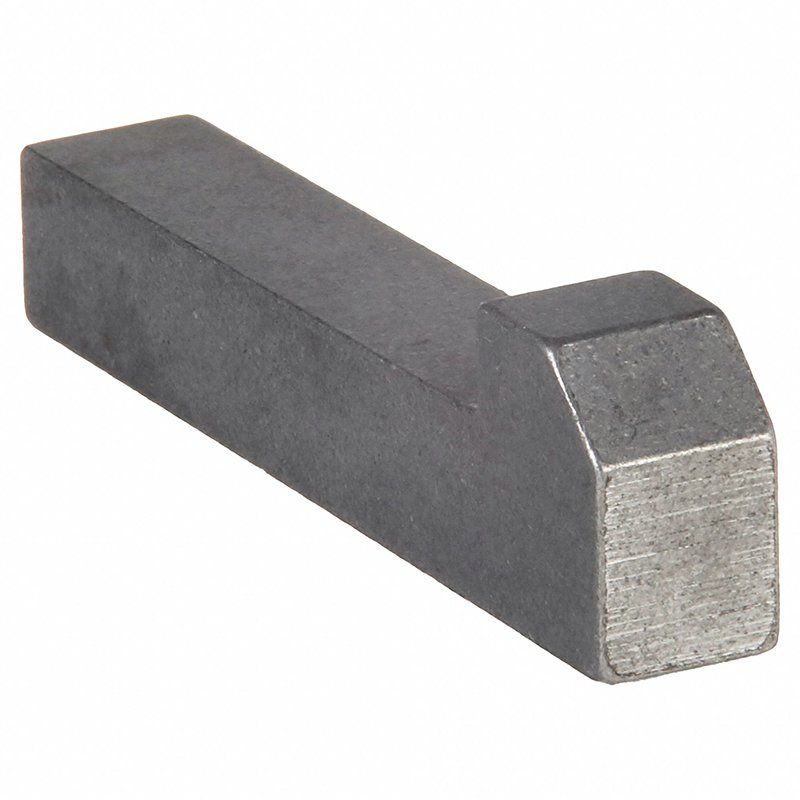

- Materials: C45 Carbon Steel (High tensile), Stainless Steel 304/316.
- Taper Ratio: Standard 1:100 taper for secure locking.
Gib Head Key Dimensions
| Width (mm) | Height (mm) | Length Range (mm) |
|---|---|---|
| 6 – 12 | 6 – 8 | 25 – 100 |
| 14 – 20 | 9 – 12 | 50 – 200 |
FAQ
Q: Why use a Gib Head Key over a standard taper key?
A: The head allows you to pry the key out easily using a drift or wedge, making maintenance much faster on large industrial equipment.
