Heavy-Duty M6-M20 Strike Anchors for Rapid Concrete Installation

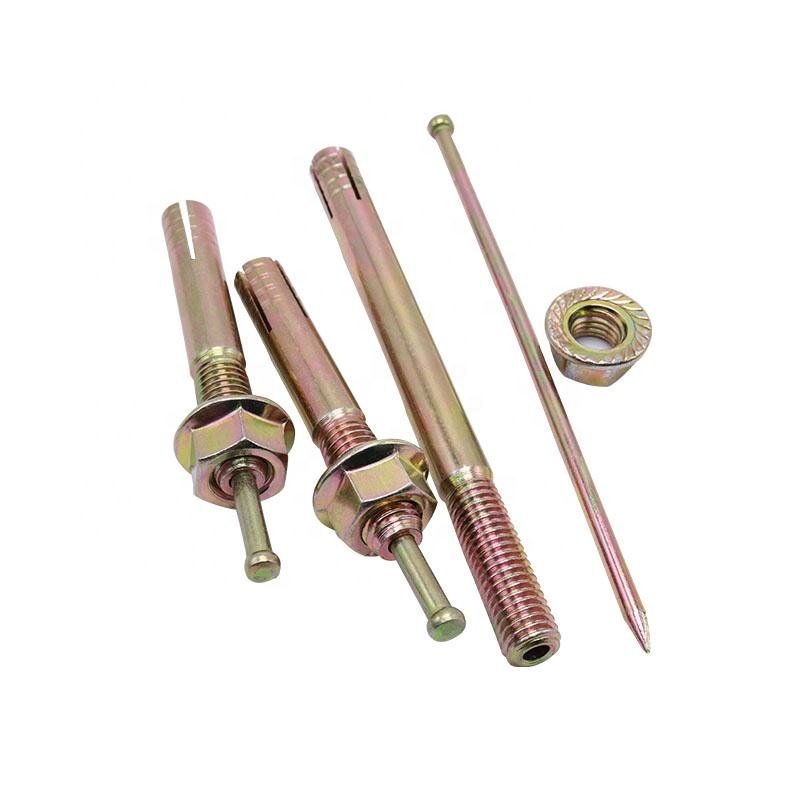

Our Strike Anchors are the go-to solution for contractors who prioritize speed and reliability. Designed for use in solid concrete, these hammer drive anchors work by driving a center pin into the anchor body, forcing the bottom to expand against the hole walls. This impact-expansion mechanism ensures a permanent hold without the complex torque requirements of wedge anchors.

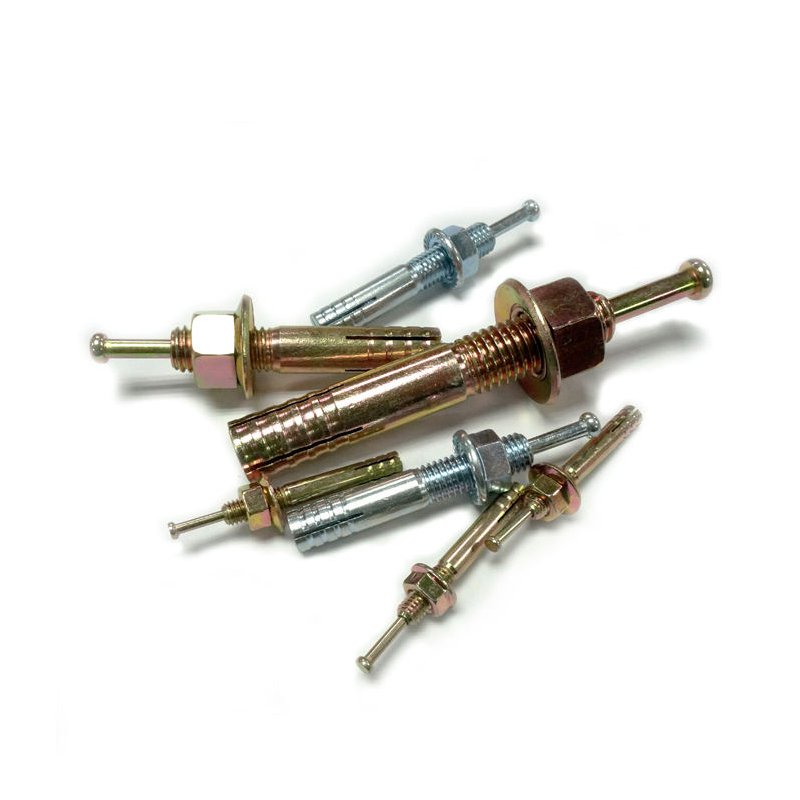

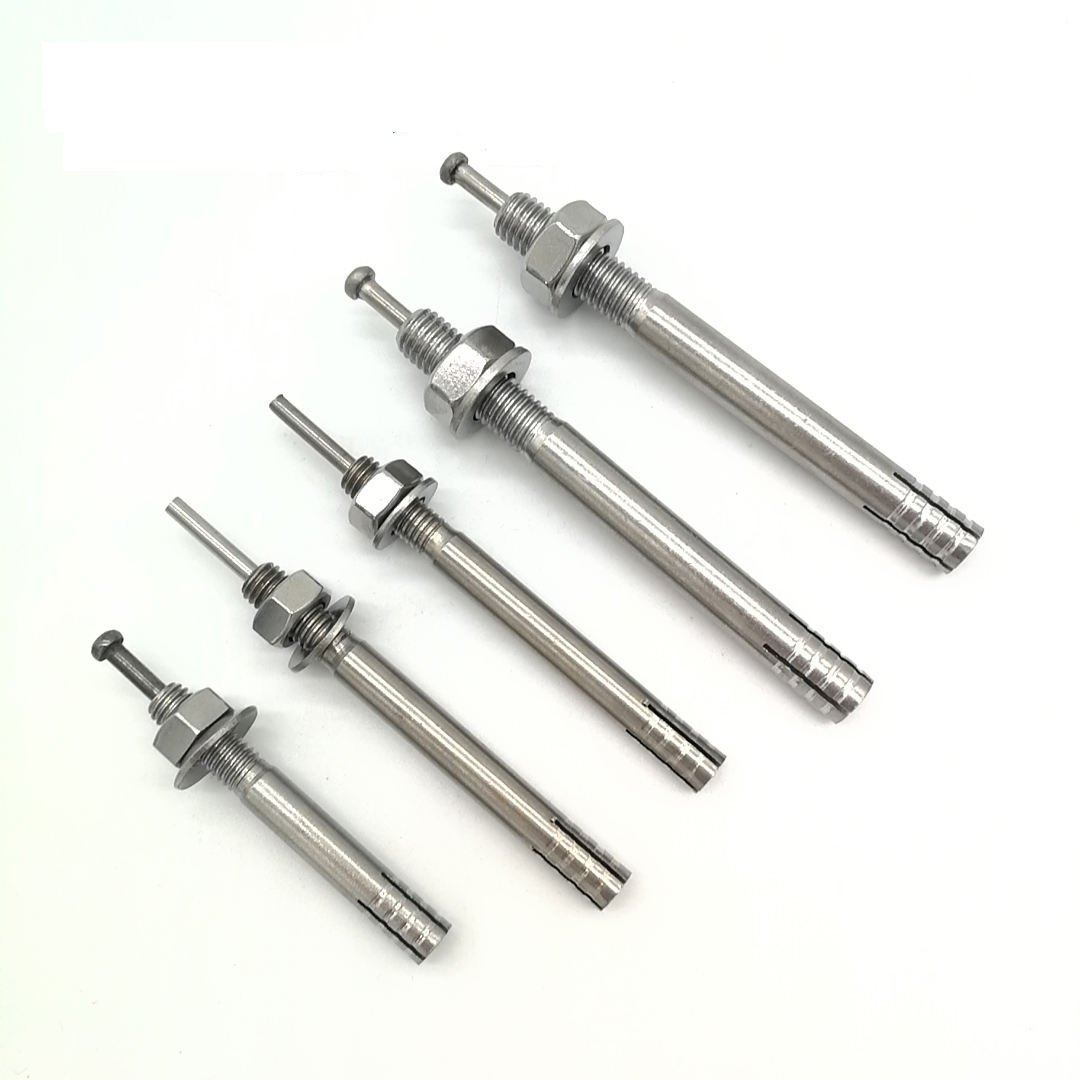

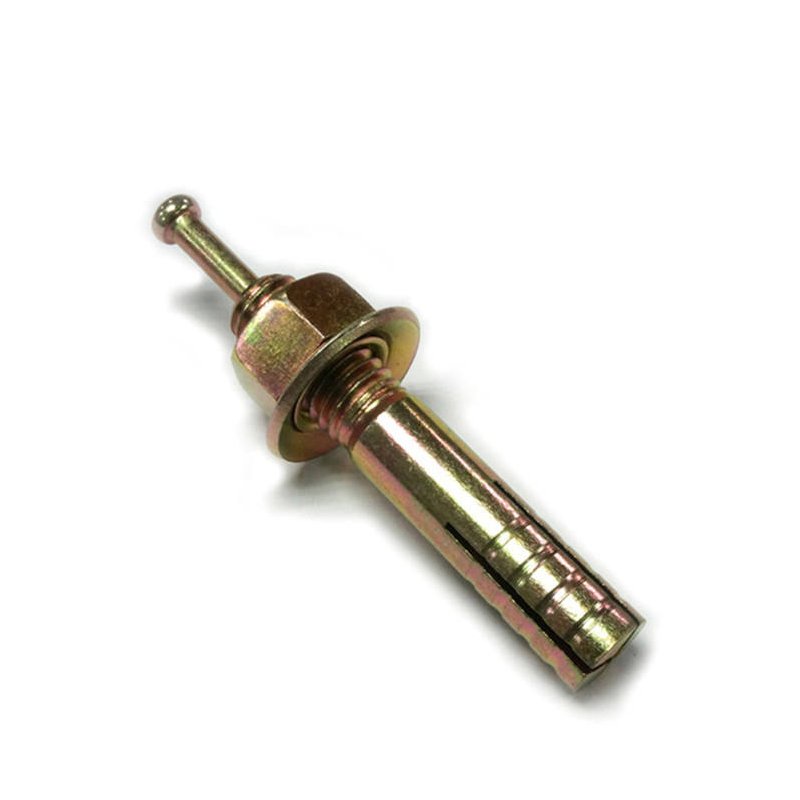

Available in Zinc Plated Carbon Steel for indoor use and Stainless Steel for maximum corrosion resistance in outdoor construction projects.
- No Torque Required: Saves significant labor time; just drill and hammer.
- Visual Confirmation: Once the pin is driven flush with the top of the bolt, the anchor is correctly set.
- Versatile Sizing: Full range from M6 to M20 to handle various load capacities.

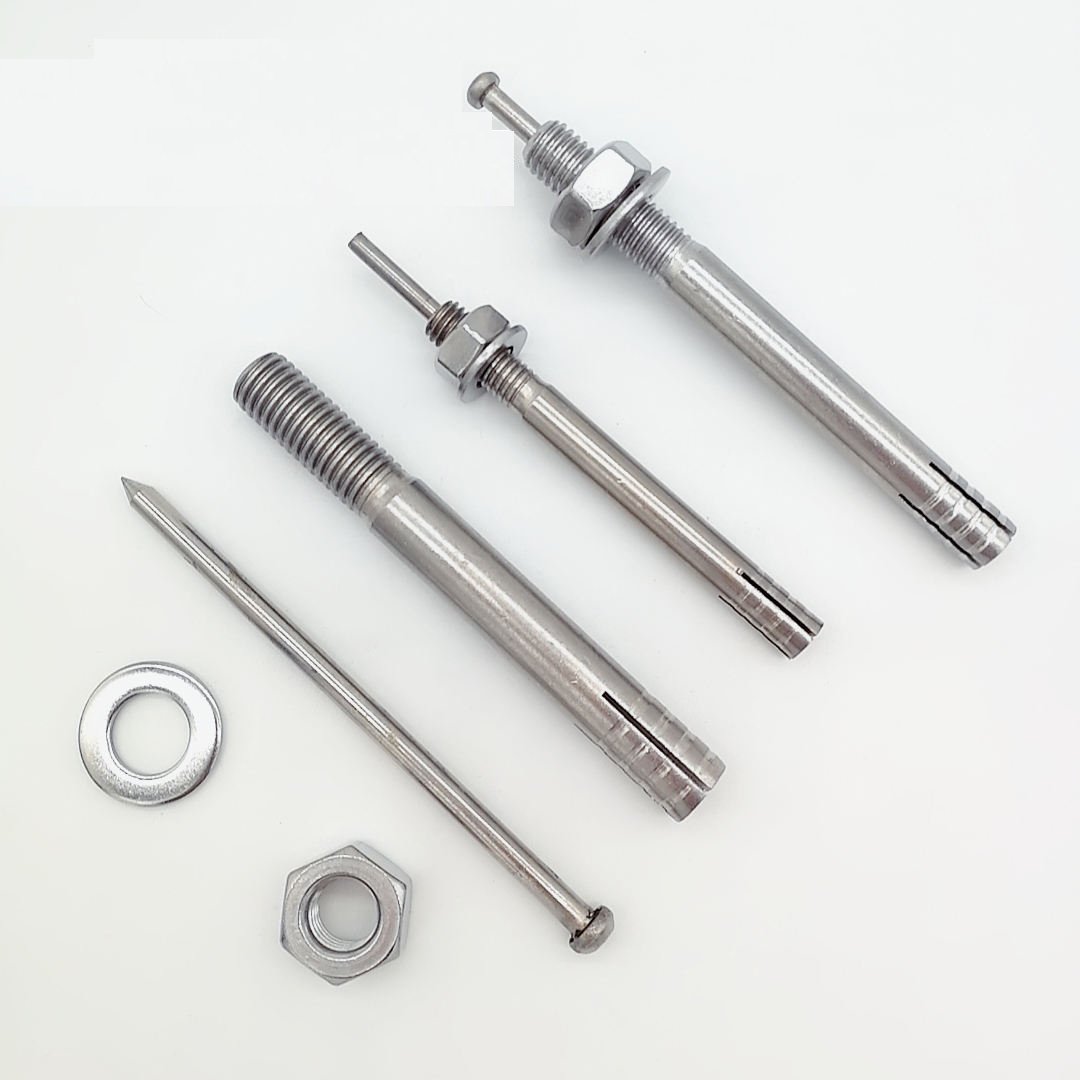

- Pre-assembled: Comes with nut and washer already attached for immediate use.
| Size (D x L) | Drill Bit Dia. | Min. Embedment | Recommended Load |
|---|---|---|---|
| M6 x 50 | 6 mm | 35 mm | Light Duty |
| M8 x 80 | 8 mm | 45 mm | Medium Duty |
| M10 x 100 | 10 mm | 55 mm | Heavy Duty |
| M12 x 120 | 12 mm | 70 mm | Heavy Duty |
| M16 x 150 | 16 mm | 90 mm | Industrial Load |
- Drill: Use a hammer drill to create a hole the same diameter as the anchor.
- Clean: Clear all dust and debris from the hole for maximum grip.
- Insert: Place the strike anchor through the fixture and into the hole until the nut is snug against the fixture.
- Strike: Using a hammer, strike the drive pin until it is flush with the top of the threaded bolt. The anchor is now fully expanded.
- Perimeter Fencing: Securing fence posts and railings to concrete slabs.
- Racking & Shelving: Fixing warehouse storage systems.
- Electrical Brackets: Fastening heavy conduits and junction boxes.
- Base Plates: Securing steel columns in non-vibratory environments.
