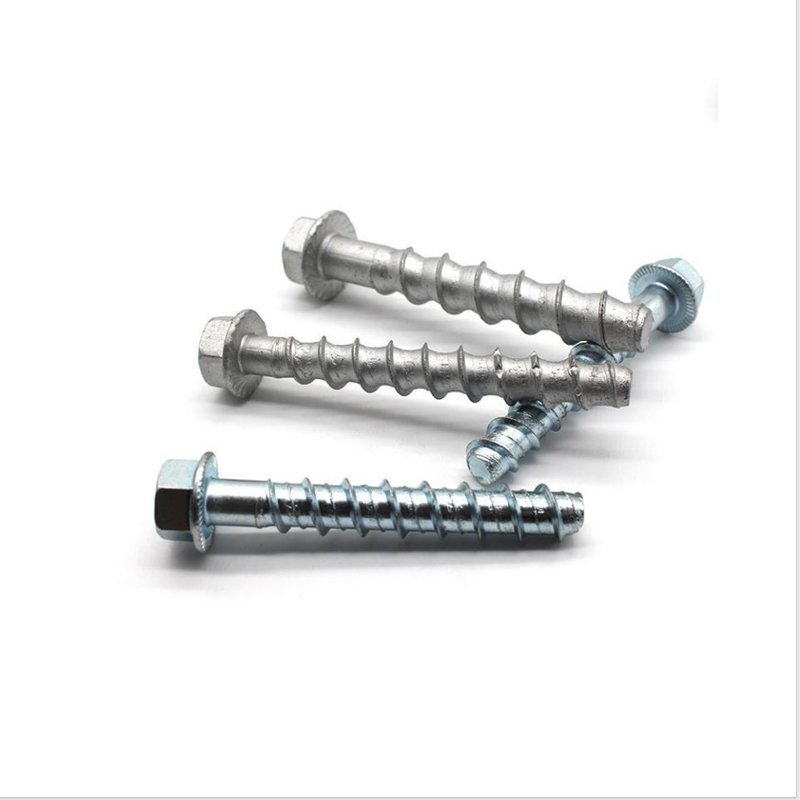

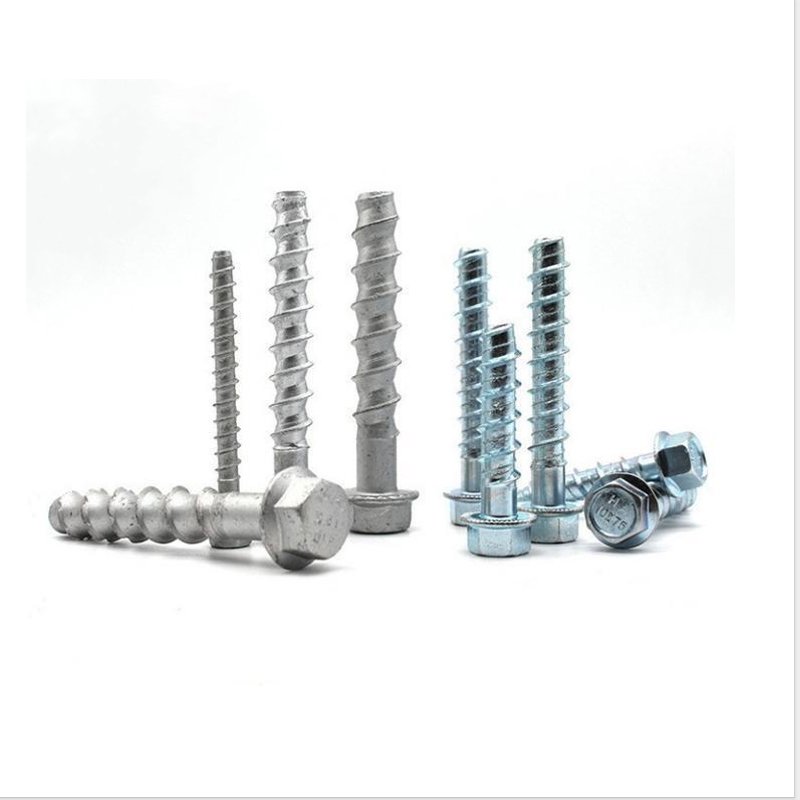

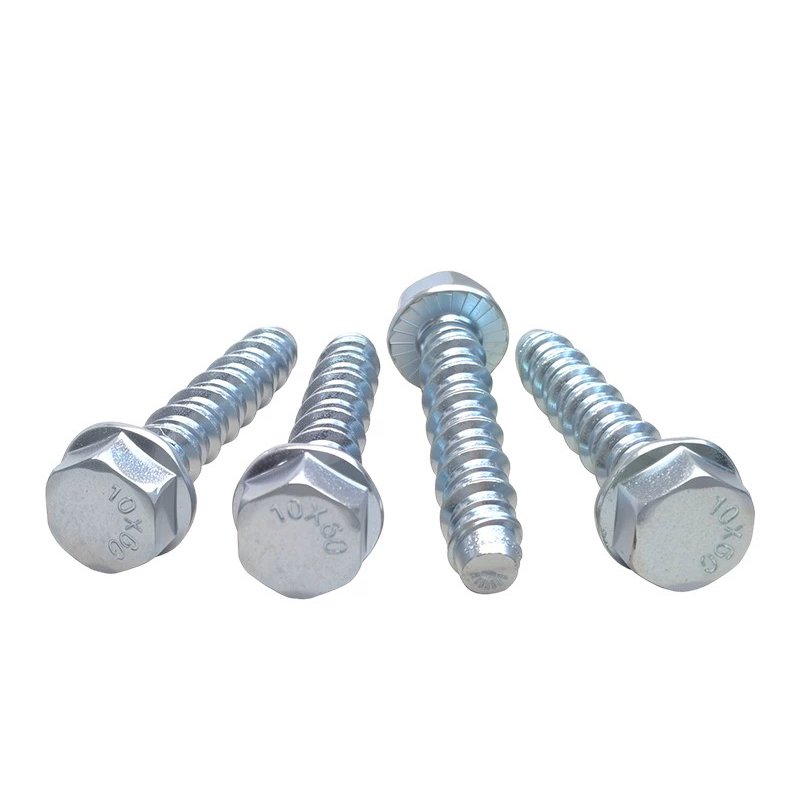

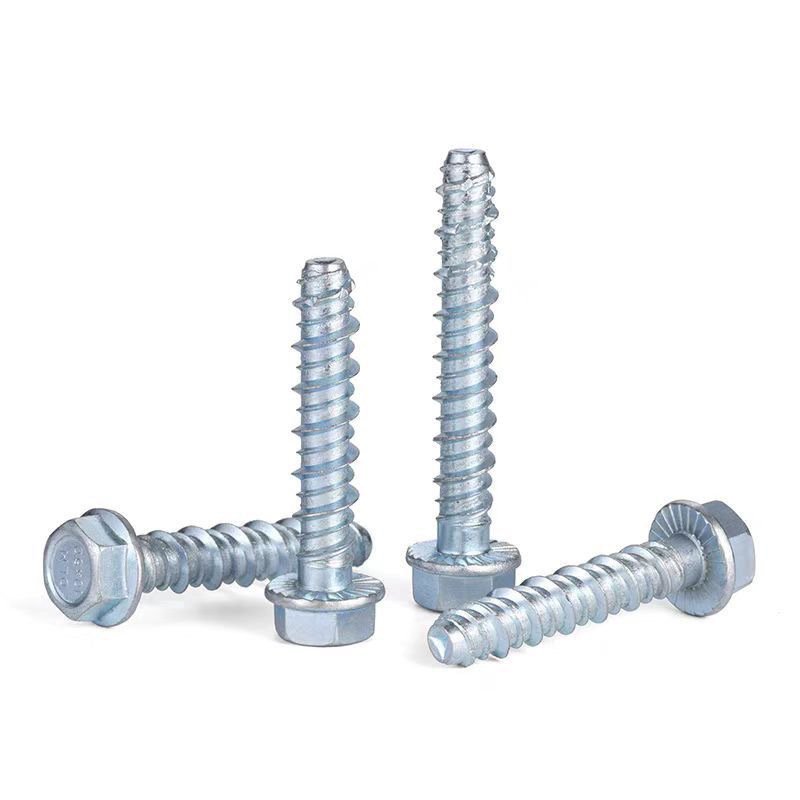

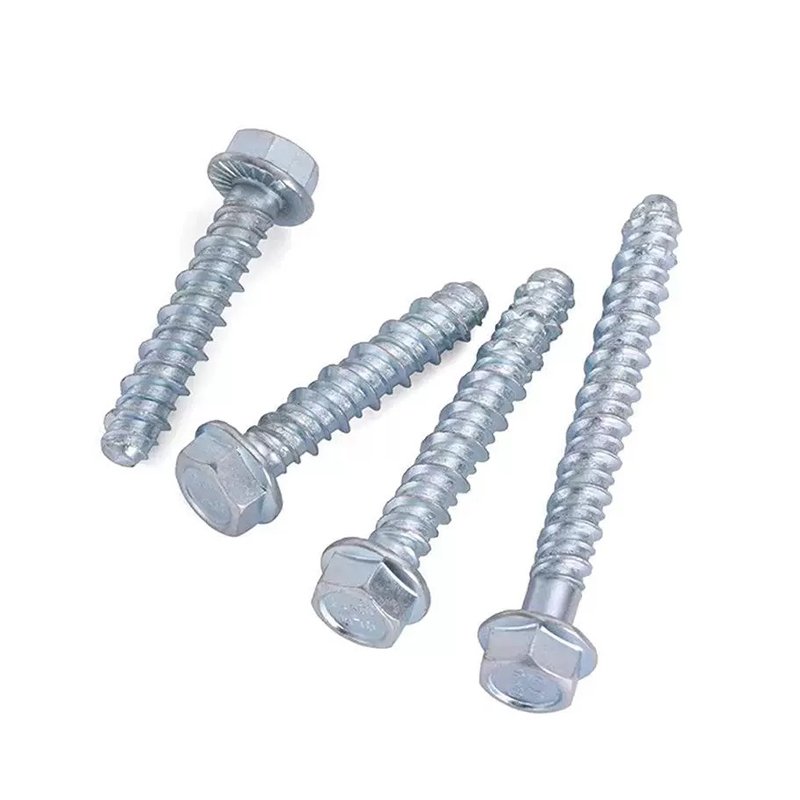

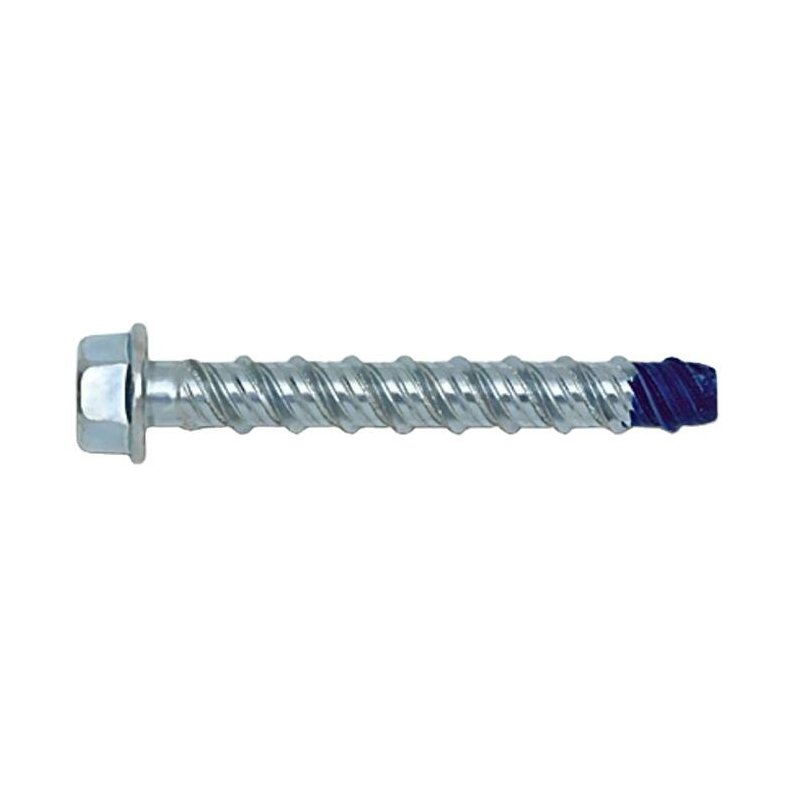

High-Performance M5-M12 Concrete Screws: The Ultimate Anchorless Solution
Our M5-M12 Concrete Screws, also known as Masonry Anchors, revolutionize the way you fasten to stone and concrete. Engineered with a specialized Hi-Lo thread, these self-tapping concrete fasteners cut their own threads directly into the substrate, eliminating the need for plastic or metal expansion anchors. Whether you are installing window frames, timber battens, or electrical fixtures into brick or solid concrete, our screws provide a fast, secure, and reliable connection.
As a leading concrete screw factory, we utilize hardened C1022A steel and advanced coating technologies like Blue Ruspert, ensuring every fastener delivers the torque and corrosion resistance required for demanding construction environments.
- No Expansion Stress: Unlike traditional anchors, concrete screws do not exert expansion force, allowing for fastening closer to edges without cracking the substrate.
- Superior Corrosion Protection: Our Ruspert coating provides up to 1000 hours of salt spray resistance, making them perfect for outdoor and coastal applications.
- Easy & Removable: These screws can be backed out and removed easily, leaving a clean hole—ideal for temporary fixtures or maintenance.
- High Pull-out Strength: The serrated high-low threads grip the masonry surface tightly, providing exceptional load-bearing capacity in both solid and hollow materials.
Ensure a perfect installation by selecting the correct metric concrete screw and matching drill bit size.
| Thread Size | Drill Bit Dia (mm) | Min. Embedment | Drive Type |
|---|---|---|---|
| M5.0 | 4.0 mm | 30 mm | Torx T25 / Phillips |
| M6.0 | 5.0 mm | 35 mm | Torx T30 / Hex |
| M7.5 | 6.0 / 6.5 mm | 40 mm | Torx T30 |
| M10 | 8.0 mm | 50 mm | Hex Head |
| M12 | 10.0 mm | 65 mm | Hex Head |
Our M5-M12 Self-tapping Anchors are the preferred choice for:
- Door & Window Installation: Fastening PVC or aluminum frames directly to masonry openings.
- Wood to Concrete: Attaching timber sole plates, furring strips, and battens to concrete floors or walls.
- HVAC & Plumbing: Mounting brackets for AC units, pipes, and ductwork on brickwork.
- Exterior Fixtures: Securing handrails, fencing posts, and light fixtures using Blue Ruspert screws for weather durability.
- Drill: Use a hammer drill and the correct diameter masonry bit to drill a hole at least 10mm deeper than the screw embedment.
- Clean: Remove all dust and debris from the hole using a blow pump or vacuum (critical for thread engagement).
- Drive: Use a high-torque impact driver to thread the concrete screw into the hole until the head is flush.
- Avoid Over-torque: Do not over-tighten, as this may strip the threads in softer materials like brick.
Q: Do I really not need an anchor?
A: Correct. The Hi-Lo threads are designed to cut directly into the concrete, creating a mechanical lock without the need for a plastic plug.
Q: What is Blue Ruspert coating?
A: Blue Ruspert is a high-grade ceramic coating that provides exceptional corrosion resistance (1000+ hours salt spray) and acts as a lubricant for easier driving.
Source M5-M12 Concrete Screws from a Trusted Factory
Looking for bulk concrete anchors with guaranteed hardness and premium coatings? We support OEM customization and global wholesale. Contact us today for a free quote and technical samples!
