Professional Lifting Eye Bolts: The Ultimate Solution for Heavy-Duty Rigging
When it comes to overhead lifting and secure anchoring, choosing the right Lifting Eye Bolts is a critical safety decision. As a professional manufacturer and global supplier, we provide premium-grade eye bolts designed to meet the most rigorous industrial standards, including DIN 580, JIS B1168, and ASME B30.26. Our products are engineered for maximum reliability, ensuring peace of mind in construction, marine, and manufacturing environments.
Why Material Matters: Stainless Steel vs. Carbon Steel
The performance of a Stainless Steel Eye Bolt depends largely on its environment. We offer two primary grades to ensure longevity:

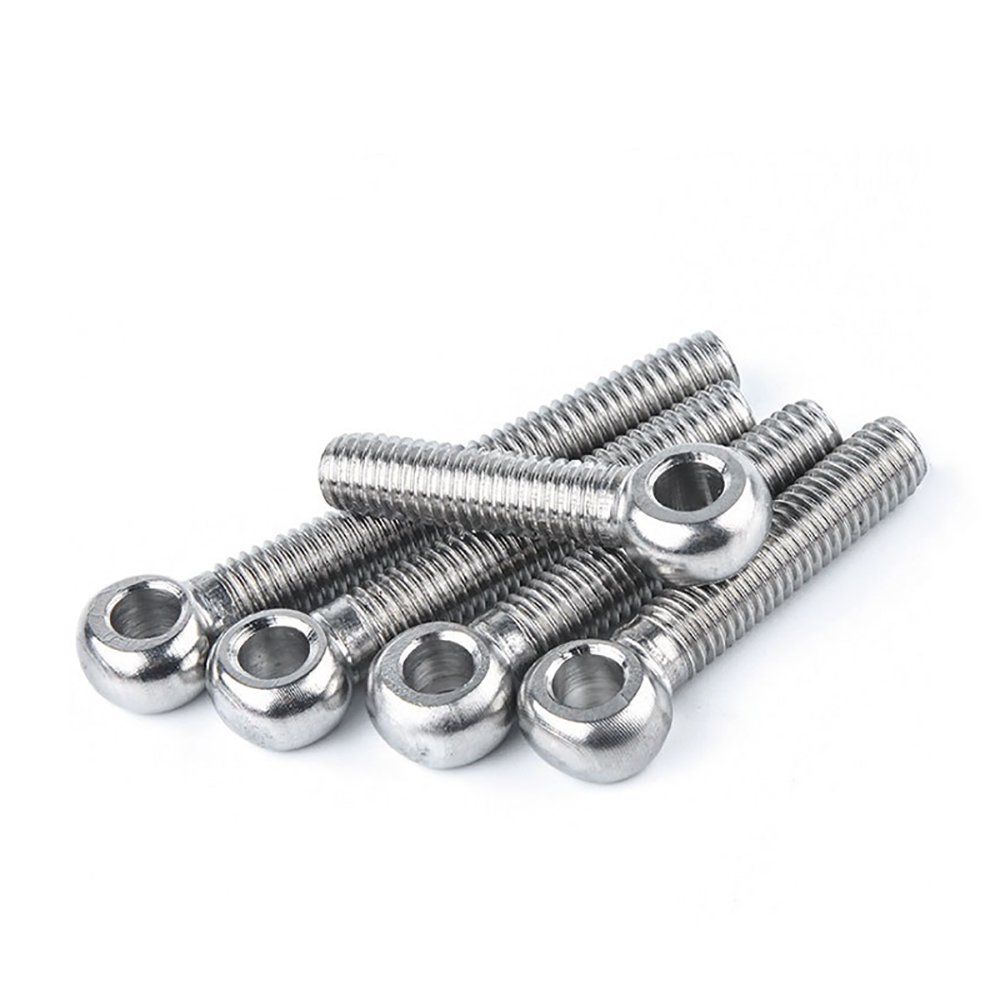

Grade 304 (A2): Ideal for general indoor and outdoor applications where high strength and basic corrosion resistance are required.
Grade 316 (A4): Specifically designed for marine and coastal environments. The addition of molybdenum provides exceptional resistance to pitting and chloride-induced corrosion, making these Marine Grade Eye Bolts the top choice for oil rigs and shipbuilding.

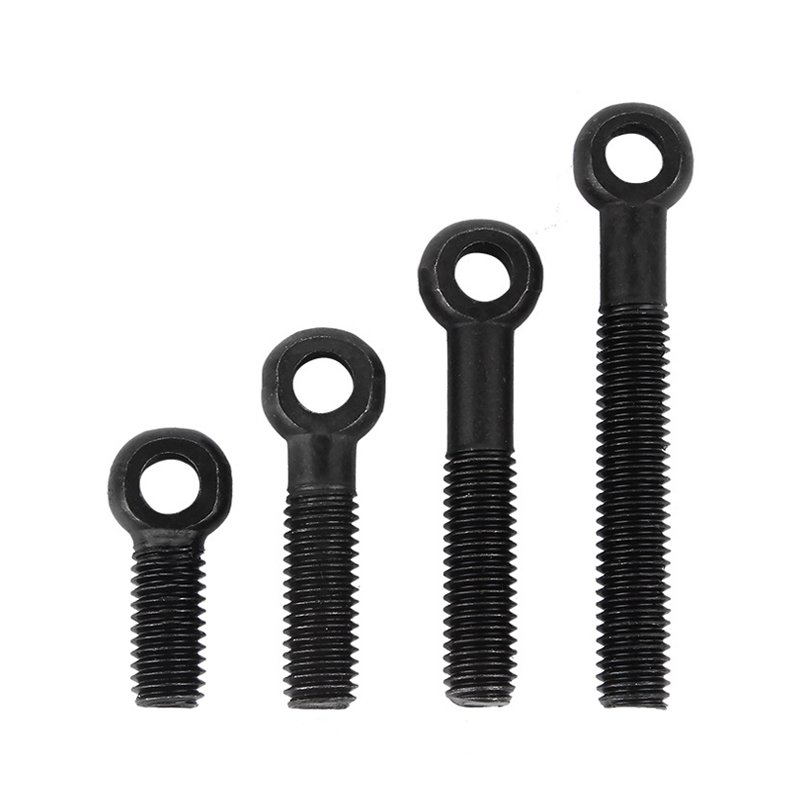

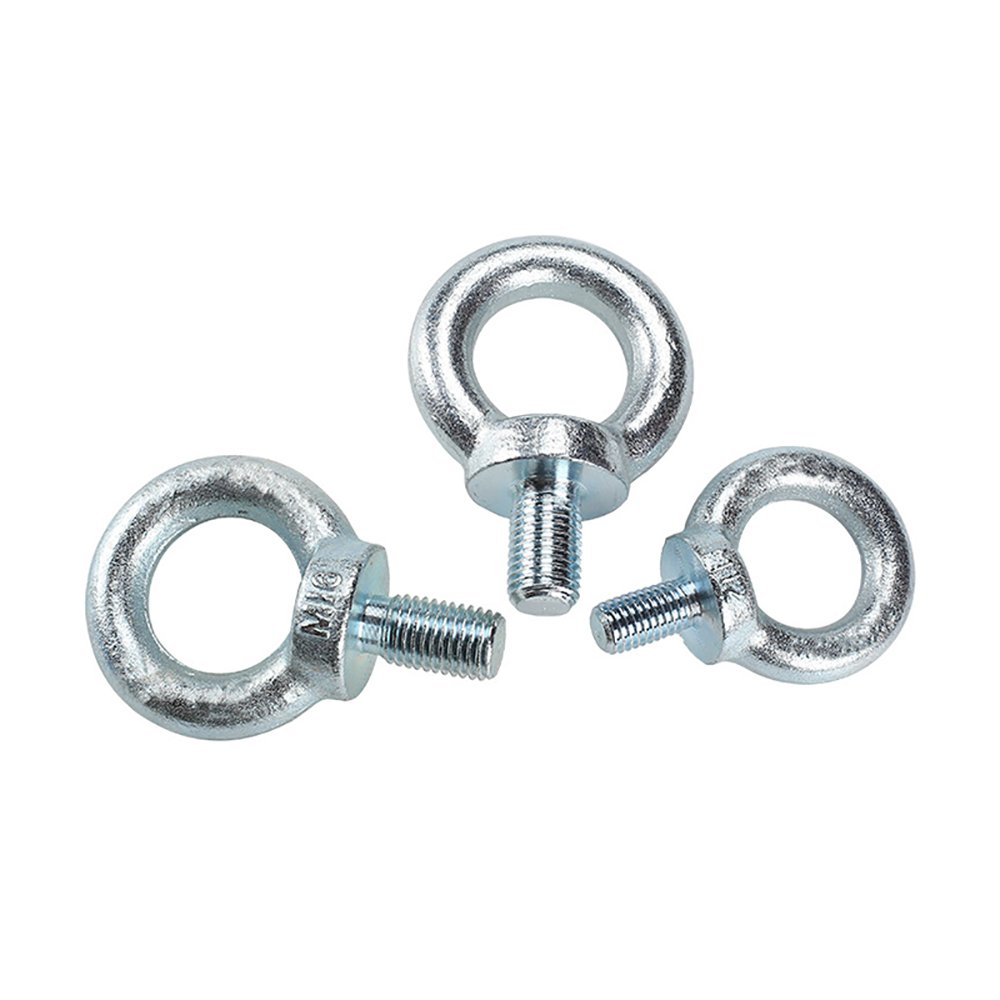

Forged Carbon Steel: For heavy industrial use where extreme load capacity is the priority, our hot-dip galvanized carbon steel bolts offer cost-effective durability.
Precision Engineering and Manufacturing Standards
Our Lifting Eye Bolts are produced using a high-precision drop-forging process. Unlike cast eye bolts, forged bolts have a continuous grain flow, which significantly increases their fatigue resistance and tensile strength.

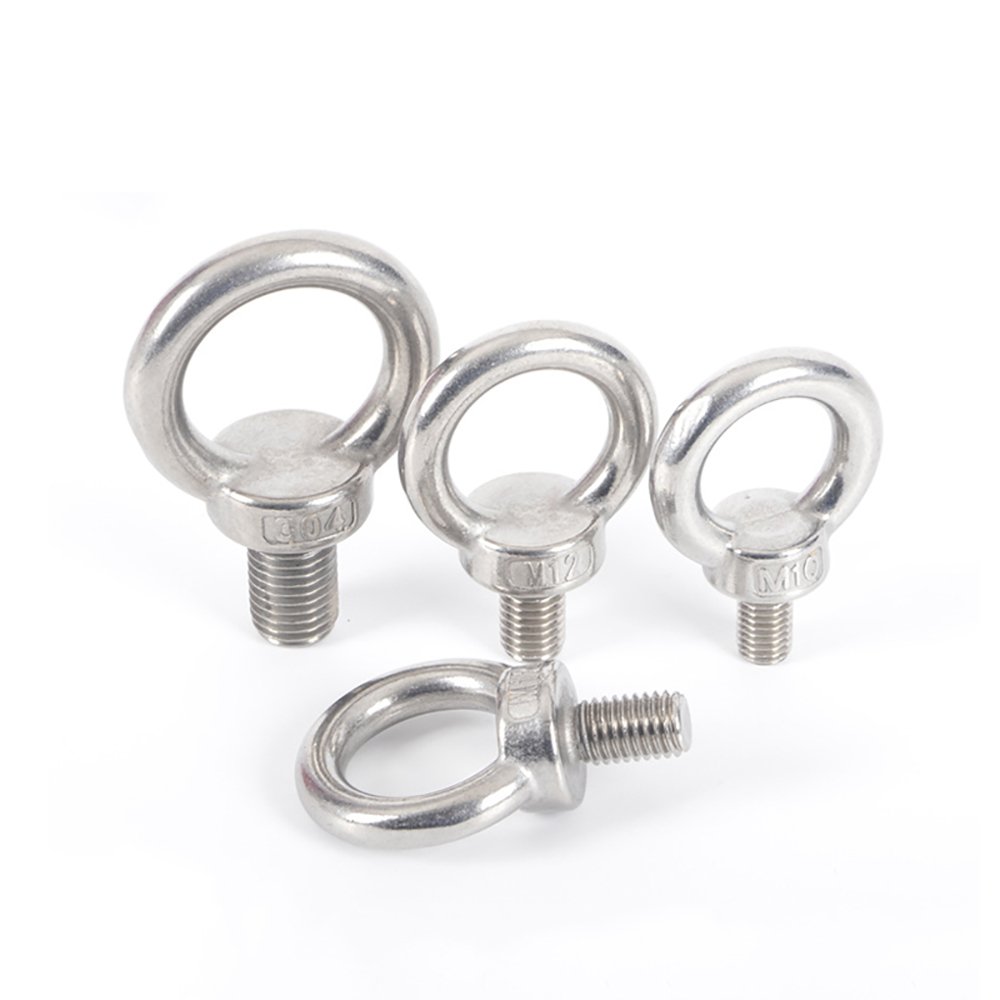

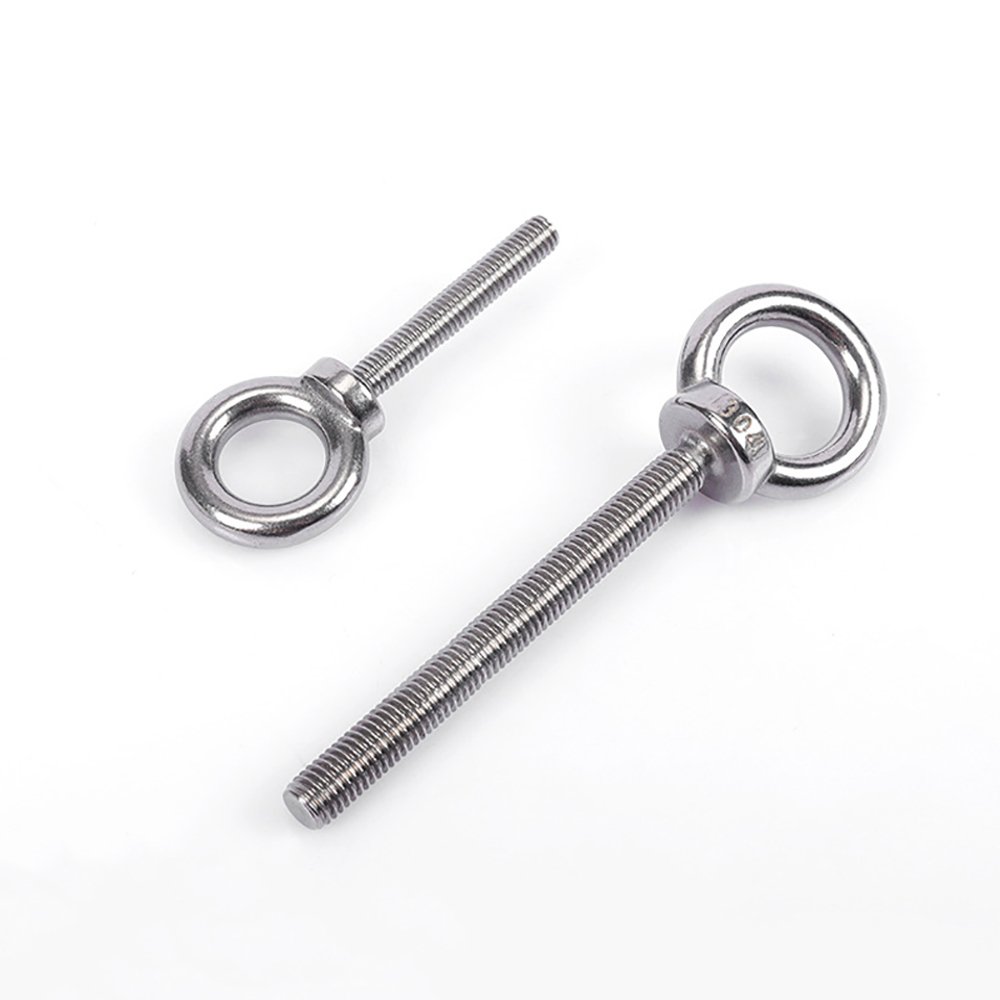

DIN 580 Standard: This is the most recognized metric standard for lifting eyes. Our DIN 580 bolts feature a large circular eye and a sturdy threaded shank, making them perfect for vertical lifts.
Fully Threaded Shank: Each bolt is precision-threaded to ensure a secure fit into the receiving hole, preventing loosening under vibration or tension.
Working Load Limit (WLL): Every bolt is clearly marked with its size and load rating. We conduct rigorous stress tests to ensure that our M6 to M64 Eye Bolts meet or exceed their rated capacities.
Critical Applications in Global Industries
The versatility of our Threaded Eye Bolts makes them essential in various sectors:
Mechanical Engineering: Used as permanent attachment points on motors, gearboxes, and control cabinets for easy transport and installation.
Rigging and Hoisting: Essential components for wire rope slings, chain slings, and spreader beams.
Construction & Architecture: Used for securing structural elements and as anchoring points for safety lines.
Transportation: Providing heavy-duty tie-down points for securing massive cargo on trucks and ships.
Safety Guidelines for Lifting Operations
To maintain a safe working environment when using Lifting Eye Bolts, please adhere to the following professional recommendations:
Visual Inspection: Regularly check for any signs of deformation, cracks, or thread damage. A bent eye bolt should never be straightened; it must be replaced immediately.
Alignment: Ensure the shoulder of the eye bolt is flush with the mounting surface. Any gap between the shoulder and the load can lead to catastrophic failure under stress.
Angle Loading: Be aware that the Working Load Limit (WLL) decreases significantly when the load is applied at an angle. For non-vertical lifts, always consult a rigging specialist.
Thread Engagement: The bolt must be threaded into a hole that is at least as deep as the bolt’s diameter to ensure maximum grip.
Why Partner With Us?
As a dedicated exporter, we understand that our clients need more than just a product; they need a reliable supply chain. Our Lifting Eye Bolts undergo strict QC inspections before shipment. We provide full material certifications (MTR) and test reports upon request. Whether you need a standard M12 Eye Bolt or custom-sized rigging hardware, our team is ready to support your project with competitive pricing and fast lead times.
