Premium Wire Lock Pins: The Ultimate Guide to Secure Fastening Solutions
In the demanding world of industrial hardware, the Wire Lock Pin (widely known as a snapper pin, safety coupler pin, or hitch pin) stands as a cornerstone of operational safety. These versatile fasteners are engineered to provide a dual-action locking mechanism, combining the shear strength of a solid pin with the vibratory security of a spring-loaded wire loop. Our mission as a professional manufacturer is to provide Wire Lock Pins that withstand the rigors of heavy-duty applications while ensuring ease of use for operators in the field.
When you choose our hardware, you are investing in precision-engineered components. Every Wire Lock Pin we produce undergoes rigorous quality control to ensure consistent tension in the wire loop and high shear resistance in the pin body. From agricultural machinery to tactical trailer hitches, our pins are designed to prevent accidental disengagement, protecting both your equipment and your personnel.
Advanced Material Options for Every Environment
The performance of a Wire Lock Pin is heavily dependent on its metallurgical composition. We offer three primary material grades to suit diverse environmental conditions:

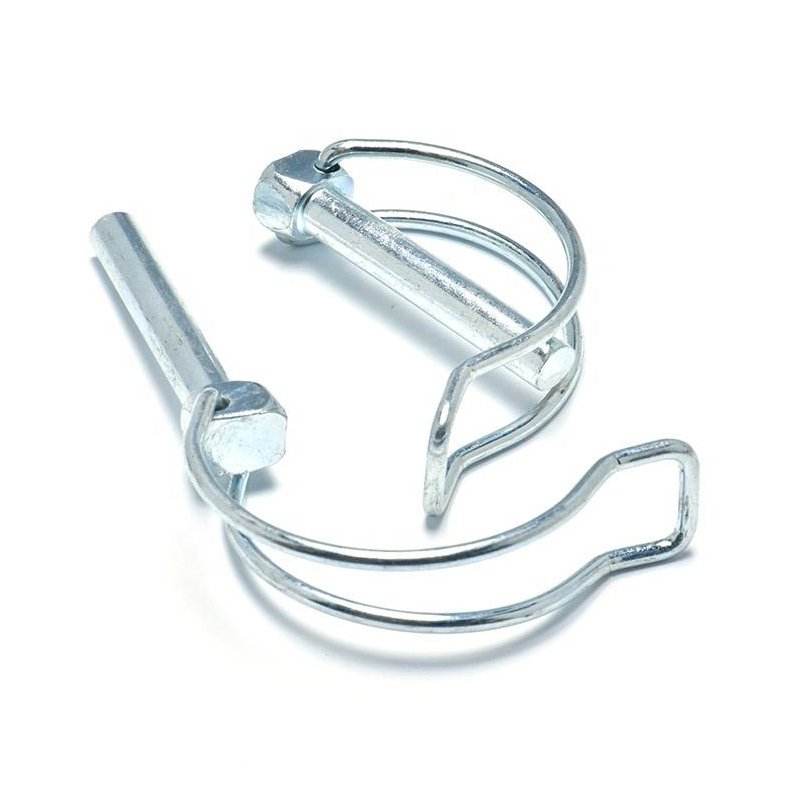

- Zinc-Plated Carbon Steel: Ideal for general-purpose indoor or dry outdoor applications. The zinc coating provides a protective barrier against oxidation, making it a cost-effective choice for lawn and garden equipment.

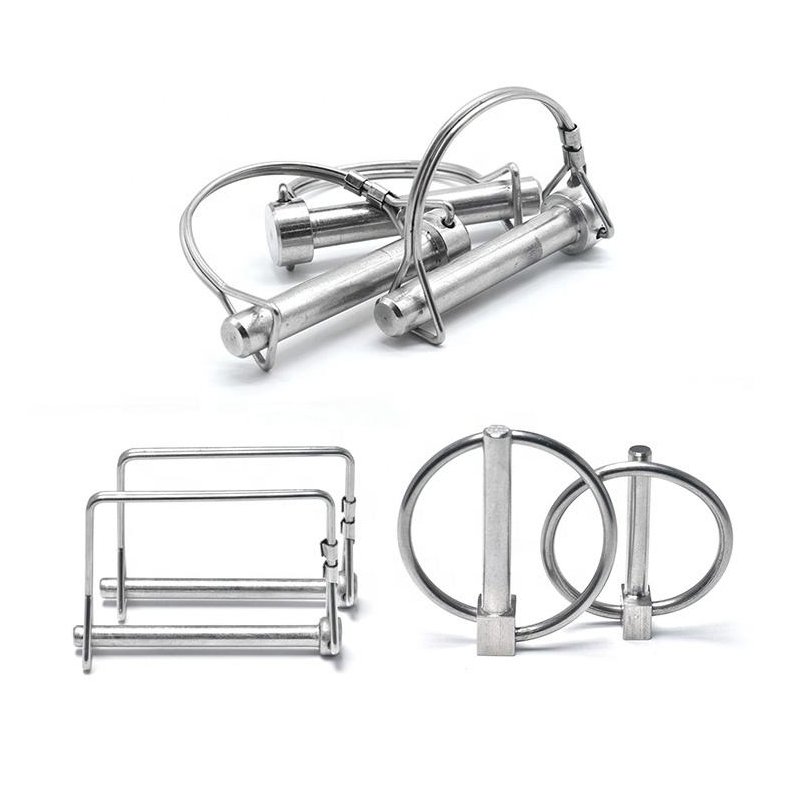

- 304 Stainless Steel: A favorite in the food processing and automotive industries. It offers excellent resistance to atmospheric corrosion and is highly durable for long-term outdoor exposure.
- 316 Marine-Grade Stainless Steel: Specifically designed for salt-water environments. If your application involves boat trailers, rigging, or coastal infrastructure, our 316 Stainless Steel Wire Lock Pins provide the ultimate protection against pitting and chloride stress.
Technical Specifications & Standard Dimensions
| SKU Reference | Pin Diameter (d) | Usable Length (l) | Arch Shape | Tensile Strength |
|---|---|---|---|---|
| WLP-INT-63 | 6.3mm (1/4″) | 45mm – 75mm | Square / Round | High Grade Carbon |
| WLP-INT-80 | 8.0mm (5/16″) | 50mm – 90mm | Square Arch | Spring Steel |
| WLP-INT-95 | 9.5mm (3/8″) | 60mm – 110mm | Round Arch | ASTM A311 |
Installation Guide: How to Use Wire Lock Pins Correctly
While Wire Lock Pins are designed for simplicity, following proper installation protocols is essential for maximum safety:
- Alignment: Ensure the holes in the two components you are joining are perfectly aligned. Forced insertion can damage the pin’s surface coating.
- Insertion: Push the pin through the hole until the head is flush against the surface.
- Locking the Wire: Swing the wire loop over the opposite end of the pin. You should feel a distinct “snap” or tension—this indicates that the wire lock mechanism is engaged.
- Inspection: Periodically check the spring tension of the wire. If the loop feels loose or deformed, it is time to replace the pin to maintain safety standards.
Where are Wire Lock Pins Used?
Our global clients utilize our Wire Lock Pins in a staggering array of industries. Their “one-piece” design is a major advantage in sectors where losing small parts (like cotter pins) could lead to catastrophic failure:

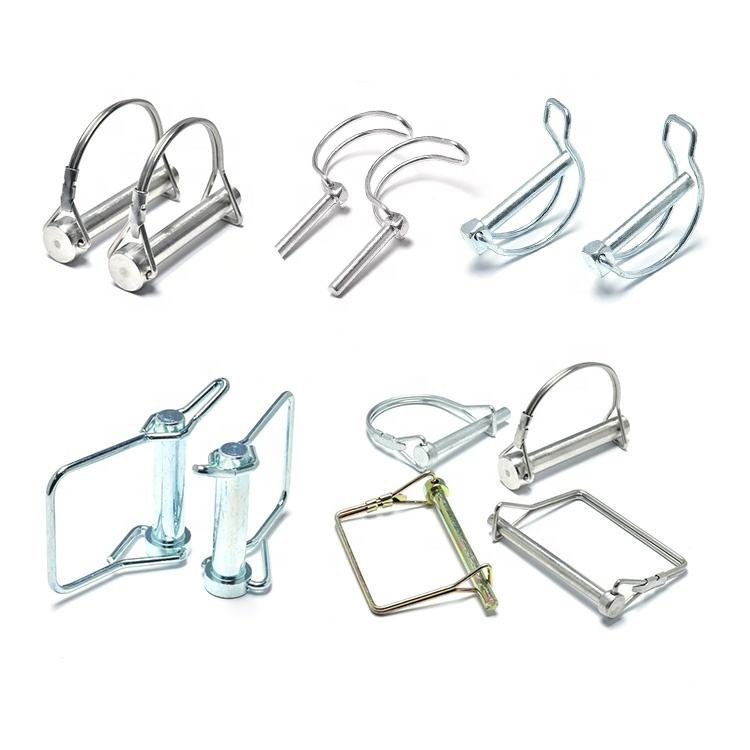

- Agricultural Sector: Used extensively on tractors for securing PTO (Power Take-Off) shafts, plow attachments, and harrow frames.
- Towing & Logistics: Critical for securing trailer coupler latches, pintle hooks, and adjustable drop hitches.
- Construction & Scaffolding: Provides a quick-release yet permanent lock for vertical scaffolding tubes and gate latches.
- Home & Garden: Found on lawn mowers, snowblowers, and utility carts for quick wheel or blade changes.
Why Partner With Us for Wholesale Wire Lock Pins?
As an export-oriented factory, we understand that our international partners require more than just a product—they require reliability and compliance. We provide full OEM/ODM support, allowing for custom branding, specialized retail packaging, and bespoke sizing. Our Wire Lock Pins are tested for salt spray resistance and shear load capacity, ensuring they meet the high expectations of the North American and European markets. By streamlining our supply chain, we offer competitive wholesale pricing without compromising on the metallurgical integrity of our hardware.
Wire Lock Pins: Frequently Asked Questions

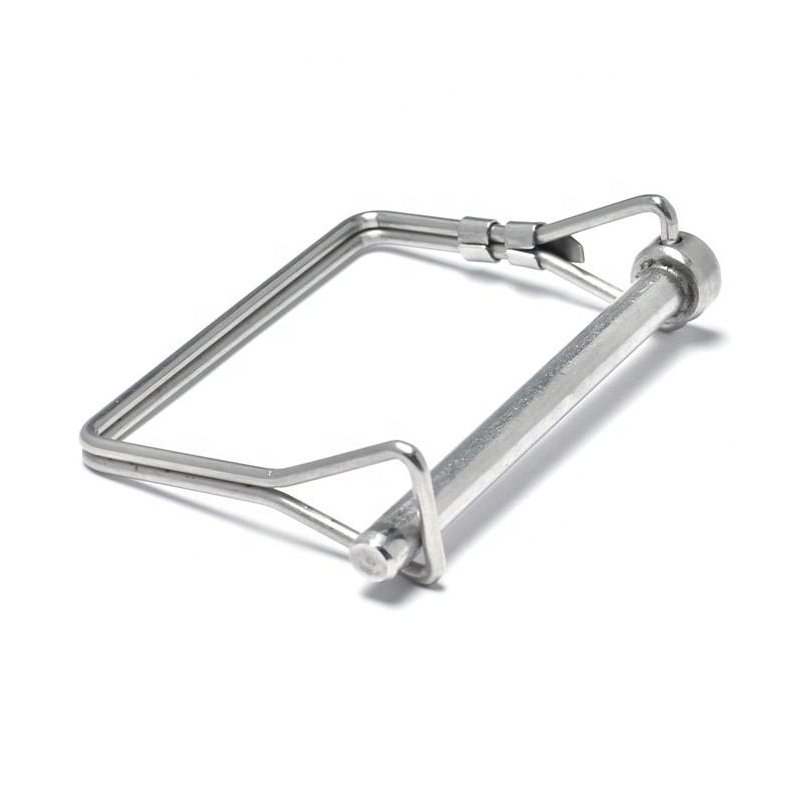

Q: What is the benefit of a Square Arch over a Round Arch?
A: A Square Arch pin is designed to sit flat against a surface, which prevents the pin from rotating or “walking” under high-vibration loads. Round Arch pins are better suited for locking round tubes or pipes.

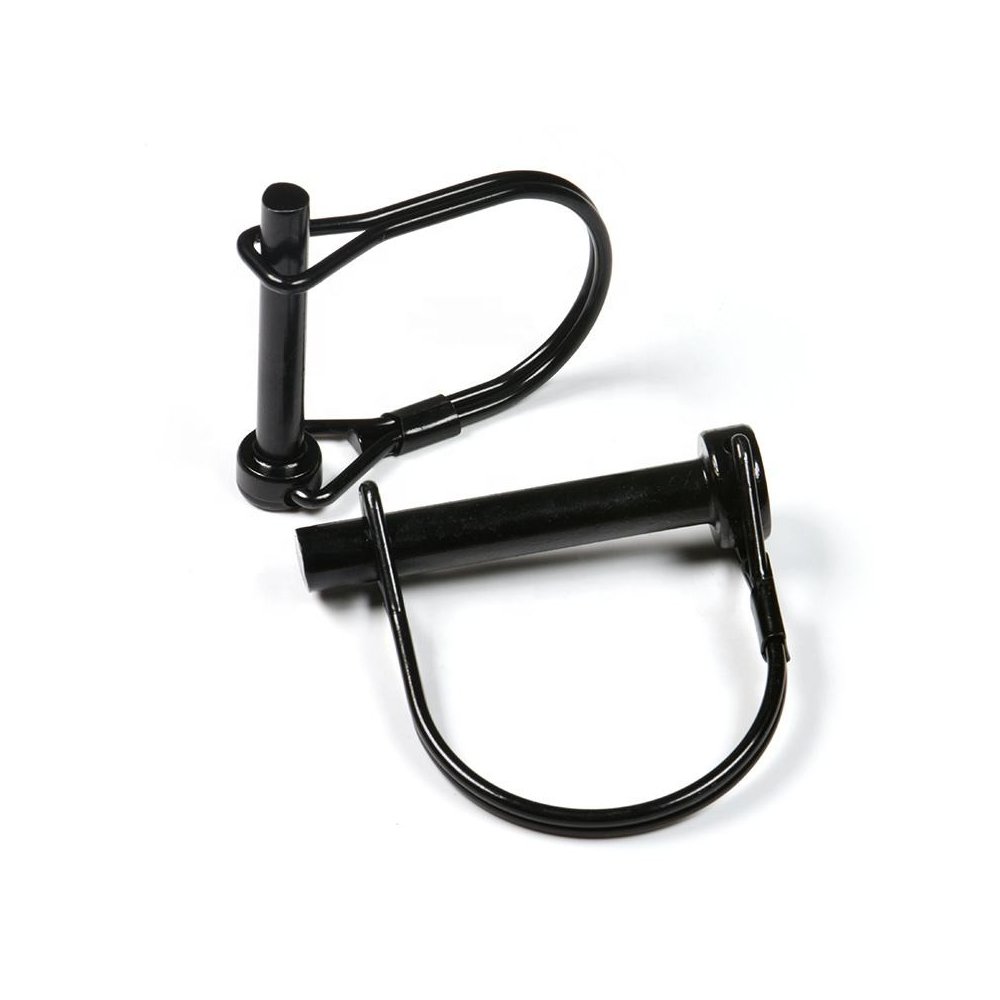

Q: Can I get a custom finish, such as black oxide?
A: Yes. While Zinc and Stainless are standard, we can provide Black Oxide or Yellow Zinc for specific aesthetic or industrial requirements upon request.
Q: Are these pins suitable for high-speed towing?
A: Yes, our heavy-duty Wire Lock Pins are specifically rated for trailer couplers used in highway towing, provided the correct diameter is selected for the load.
Do not leave your equipment’s security to chance. Our Wire Lock Pins offer the peace of mind that only high-quality manufacturing can provide. For detailed technical drawings or to request a sample pack for your next project, contact our engineering team today.
