Professional Chain Blocks: Reliable Manual Lifting for Industrial Excellence

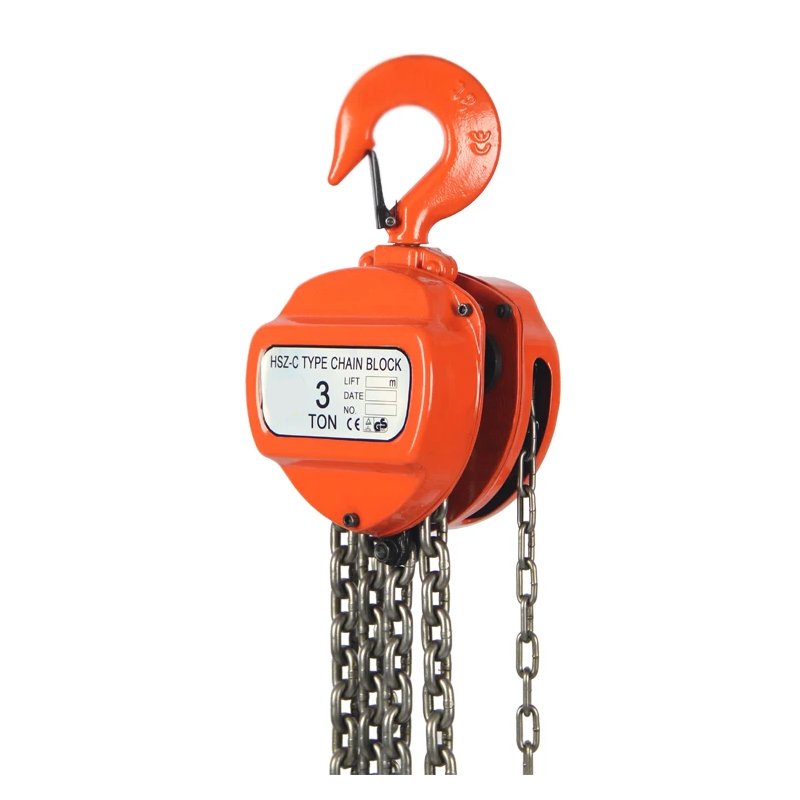

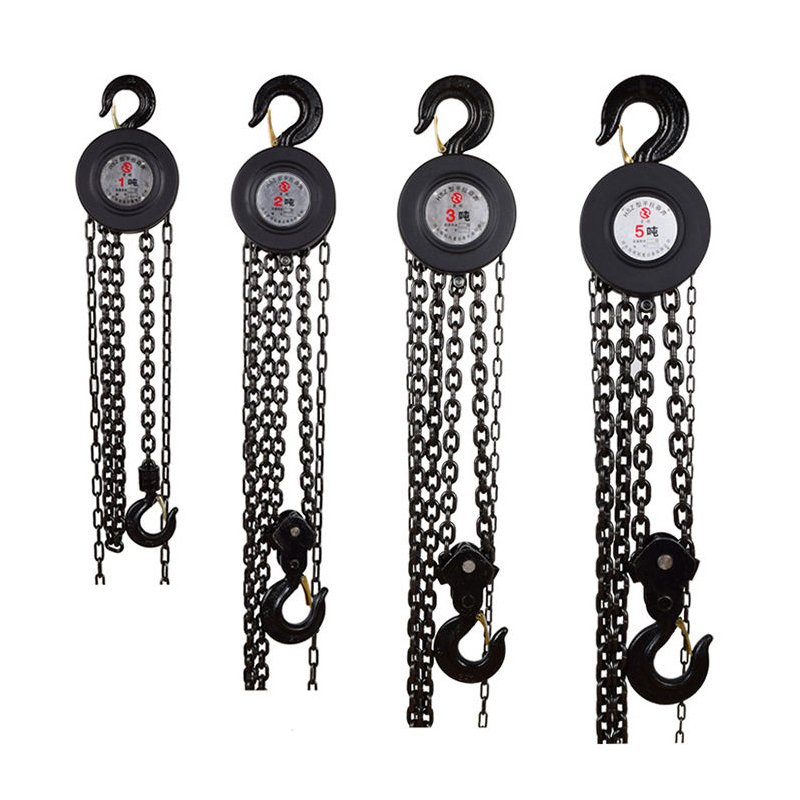

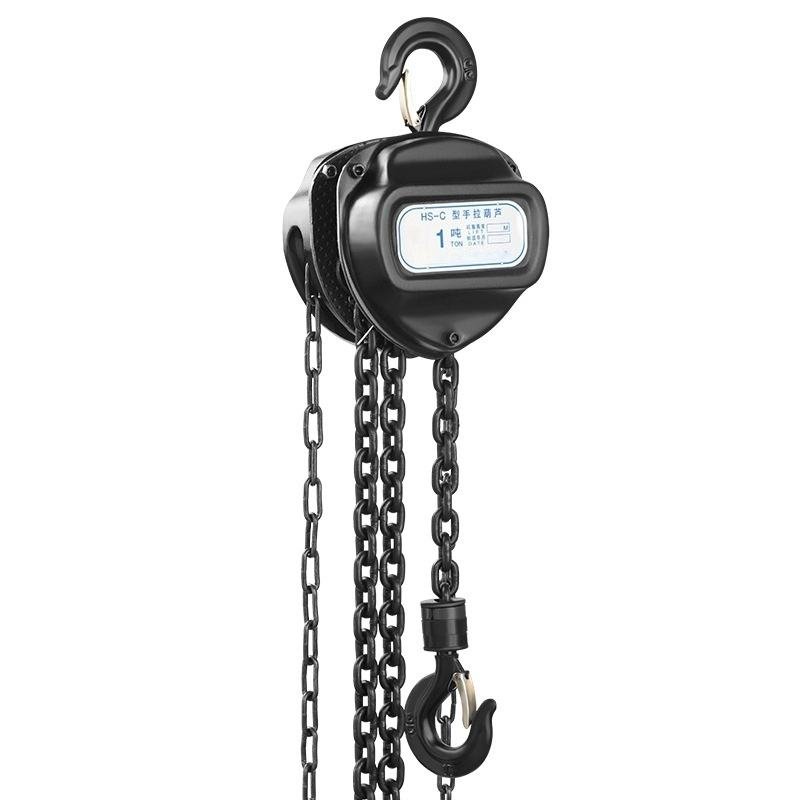

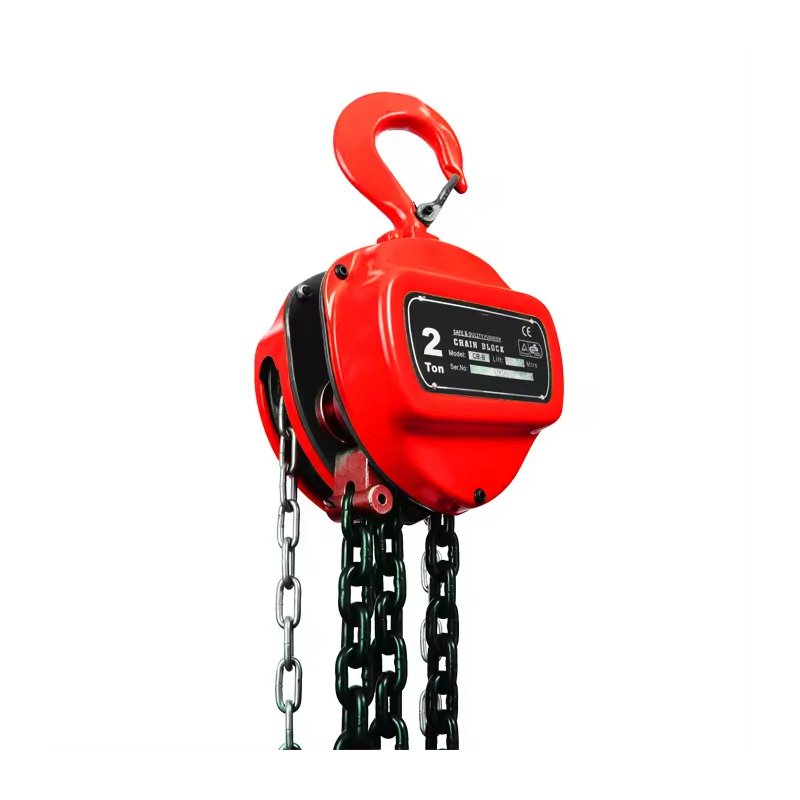

A Chain Block (also known as a hand chain hoist) is a portable lifting device operated by a hand chain. It is designed to lift and lower heavy loads by converting manual pulling force into high-torque mechanical energy. At [Your Brand Name], our hoists are built with premium components to ensure durability in the most demanding environments, from construction sites to shipyards.
1. Robust Construction & Safety Engineering
Safety is our top priority. Every unit undergoes load testing up to 150% of its rated capacity before shipping:
- G80 Load Chain: We use Grade 80 heat-treated alloy steel chains that offer exceptional strength and wear resistance.
- Double-Pawl Braking System: Ensures that if one pawl fails, the second will continue to hold the load securely, preventing accidental drops.
- Drop-Forged Hooks: Our hooks are designed to bend slowly to warn of an overload rather than snapping, providing a critical safety margin.
- Steel Gear Cover: A rugged outer shell protects the internal gear mechanism from dust, debris, and impact.
2. Smooth Operation with Minimal Effort
Our chain hoists utilize precision-milled gears and ball bearings on the load sprocket. This reduces friction and allows the operator to lift heavy loads with up to 30% less manual pull compared to standard hoists. The enclosed design ensures the chain remains aligned and prevents “chain jamming” during fast operation.
3. Technical Specifications Table
| Model Capacity | Load Chain Dia. | Effort to Lift (N) | Net Weight (3m) |
|---|---|---|---|
| 1.0 Ton | 6 mm | 304 N | 11.0 kg |
| 3.0 Ton | 8 mm | 343 N | 22.5 kg |
| 5.0 Ton | 10 mm | 372 N | 35.0 kg |
| 10.0 Ton+ | 10 mm x 3 lines | 390 N | 68.0 kg+ |
Frequently Asked Questions (FAQ)
Q: What is the difference between a Chain Block and a Lever Hoist?

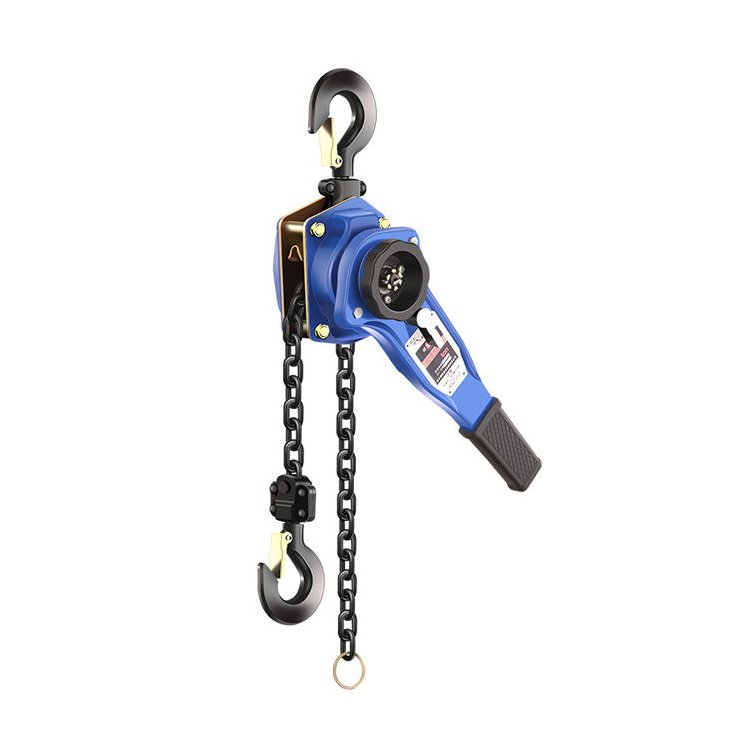

A: A Chain Block is operated by pulling a hand chain and is typically used for vertical lifting. A Lever Hoist (Come-along) is operated by a handle and can be used for both vertical lifting and horizontal pulling.
Q: Can I use a Chain Block for overhead lifting?
A: Yes, our hoists are specifically designed and rated for overhead lifting, provided they are used within their rated Working Load Limit (WLL).
Q: How often should the load chain be lubricated?
A: For optimal performance and to prevent wear, the load chain should be lubricated weekly under normal use, or daily in dusty or corrosive environments.
Q: Do you offer custom lift lengths?
A: Yes. While 3m and 6m are standard, we can customize the load chain and hand chain to any length required for your specific project.
