Professional Locking Carabiners: Reliability for Climbing & Industrial Rigging
Locking Carabiners and Screw Lock Snap Hooks are indispensable safety links used in rope access, mountain climbing, and industrial fall protection. At [Your Brand Name], we manufacture carabiners that undergo rigorous stress testing and quality inspections to ensure every gate locks securely and every body withstands its rated breaking strength.
1. Screw Lock vs. Auto-Lock: Choosing the Right Gate
We provide various locking systems to suit different operational speeds and safety levels:

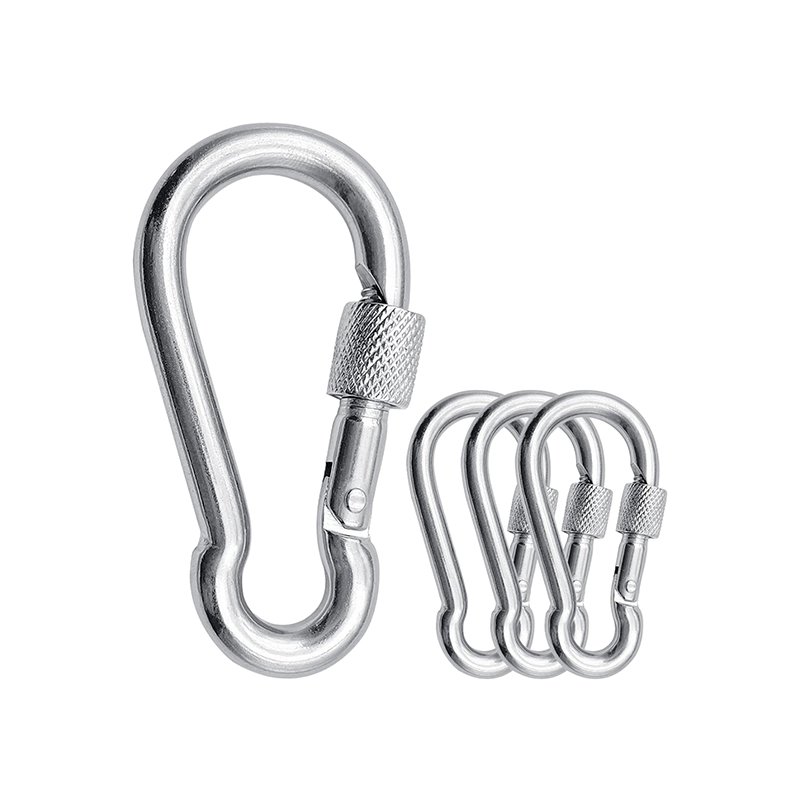

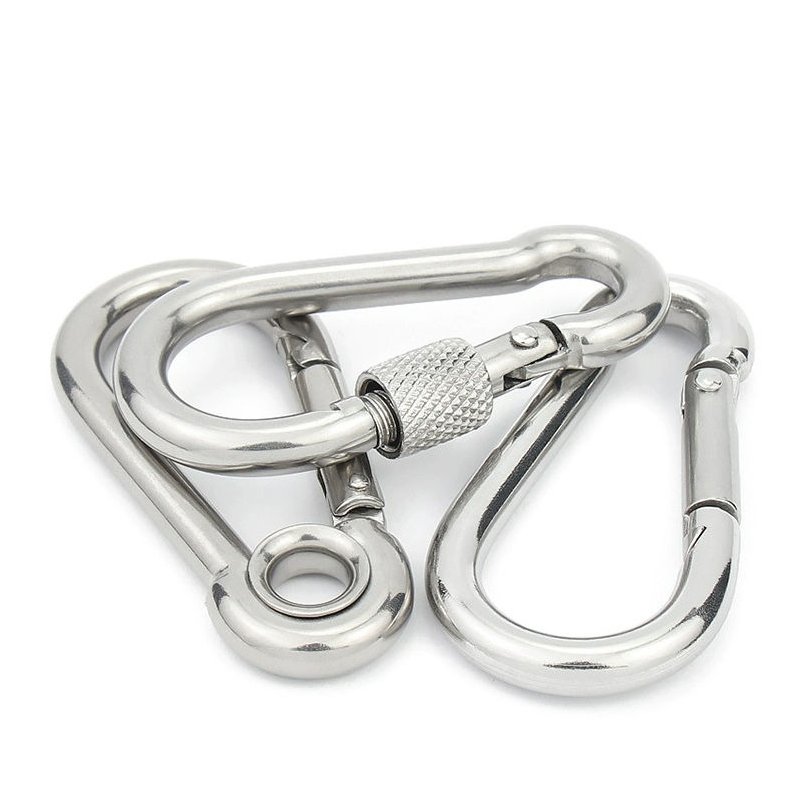

- Screw Lock Carabiner: Features a manual threaded sleeve. It is highly reliable in harsh environments (mud, ice) and allows the user to see clearly if the gate is locked.
- Twist Lock (2-Way): Automatically locks when the gate closes. Requires a simple twist and push to open, ideal for frequent transitions.
- Triple Lock (3-Way): The highest security level, requiring three distinct movements (slide, twist, push) to open, preventing accidental rope friction openings.
2. Geometric Designs for Optimized Loading
- D-Shape Carabiner: The strongest design as it shifts the load to the spine (the strongest part of the carabiner).
- Oval Carabiner: Ideal for pulleys and gear organization, offering a symmetrical shape that prevents shifting.
- HMS (Pear) Carabiner: Specifically designed for belaying with a Munter hitch or for use with multiple ropes.
3. Technical Specifications & Load Table
| Carabiner Model | Breaking Strength | Weight | Ideal Application |
|---|---|---|---|
| AL-D25 (Aluminum) | 25 kN | 65g | Rock Climbing / Arborist |
| SS-Oval30 (Steel) | 30 kN | 180g | Industrial Safety / Rigging |
| Heavy Duty Forge | 50 kN | 240g | Rescue Operations |
Frequently Asked Questions (FAQ)
Q: What does “25kN” mean on a carabiner?
A: 1kN (kilonewton) is approximately equivalent to 100kg of force. A 25kN rating means the carabiner can withstand roughly 2,500kg of force along its major axis before failing.
Q: Can I use aluminum carabiners for industrial rigging?
A: Aluminum is excellent for personal fall protection due to its light weight. However, for permanent rigging or abrasive industrial environments, stainless steel is preferred for its superior wear resistance.
Q: How do I know if my Screw Lock Carabiner is safely locked?
A: Most professional carabiners feature a “red line” indicator on the gate. If you can see the red marking, it means the screw sleeve is not fully closed.
