Industrial Wire Rope Clips: Secure and Reliable Rigging Hardware
Wire Rope Clips, also known as wire rope clamps, are essential hardware components used to form a load-bearing eye at the end of a wire rope or to connect two cables together. At [Your Brand Name], we provide precision-engineered clips that ensure maximum grip and safety for various industrial, marine, and construction applications.
1. Comprehensive Types for Different Load Requirements
Choosing the right clip depends on your safety factor and application environment:

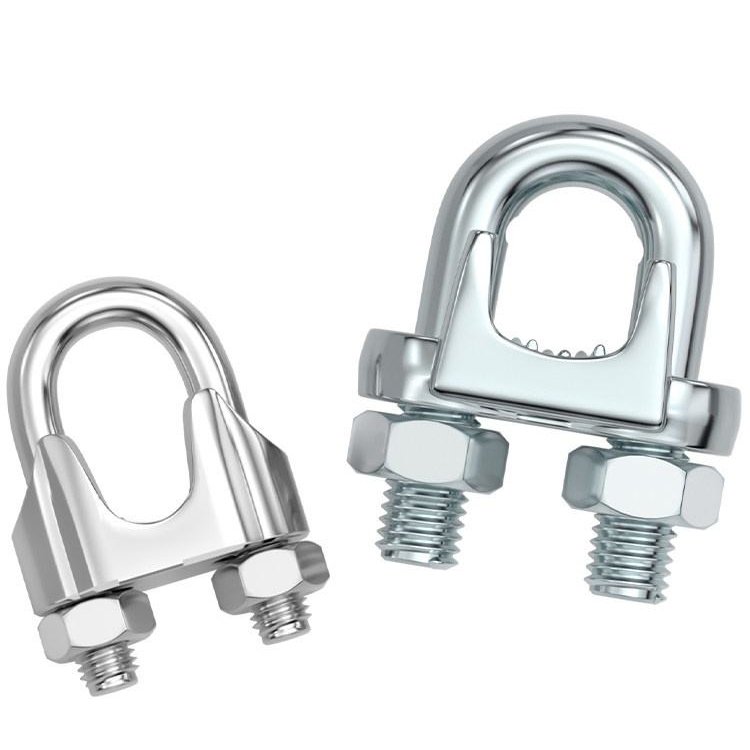

- US Type Drop Forged Clips: The industry standard for heavy-duty applications and overhead lifting. They offer superior strength and consistency.

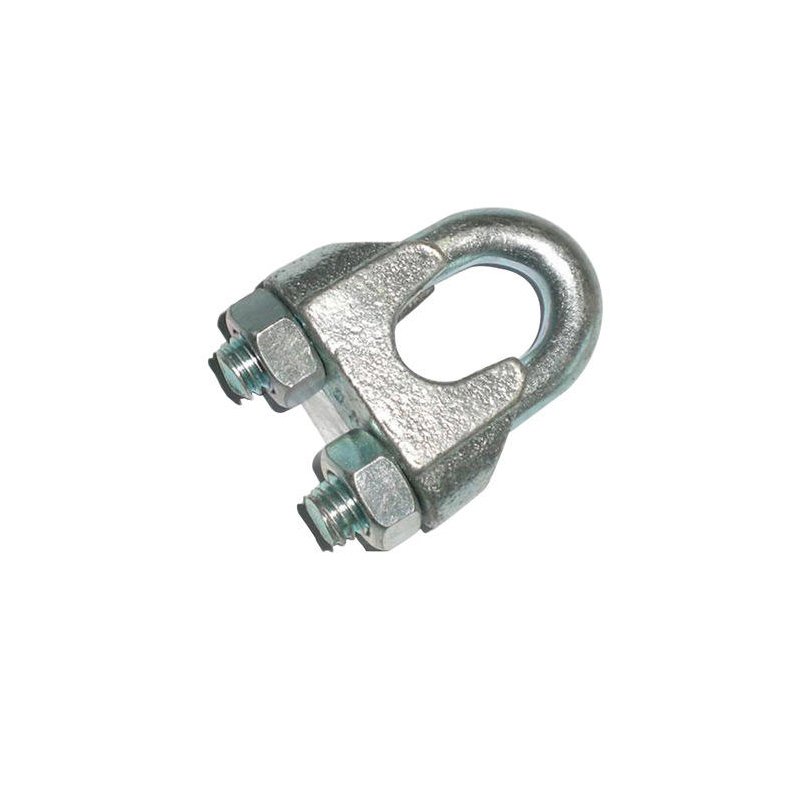

- DIN 741 Malleable Clips: Best suited for light-duty tasks such as fencing, guardrails, and non-critical applications.
- Fist Grip Clamps: Feature a double-saddle design that prevents the nuts from being installed incorrectly, providing extra security.

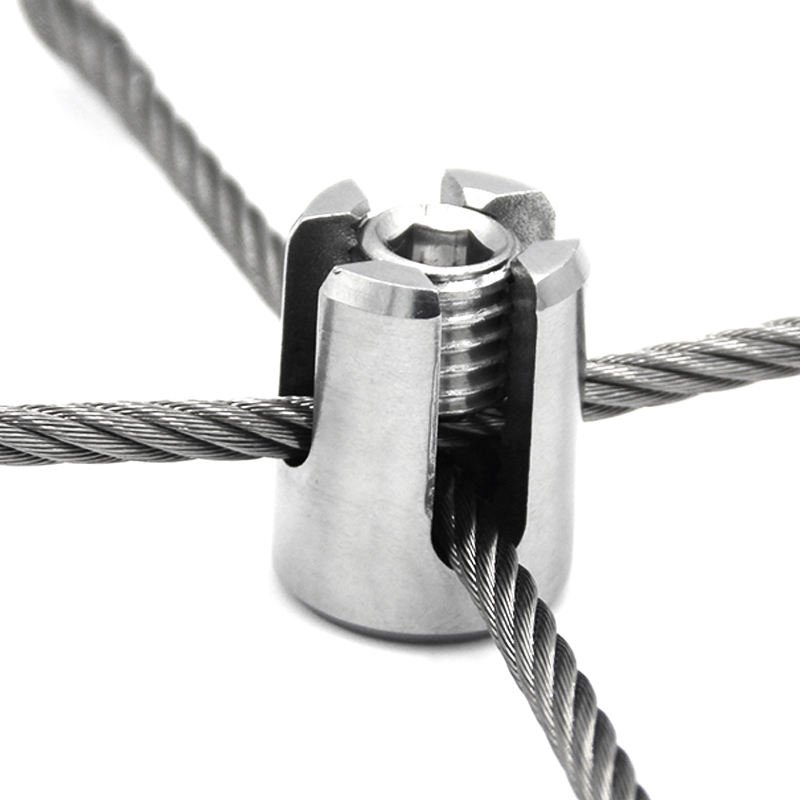

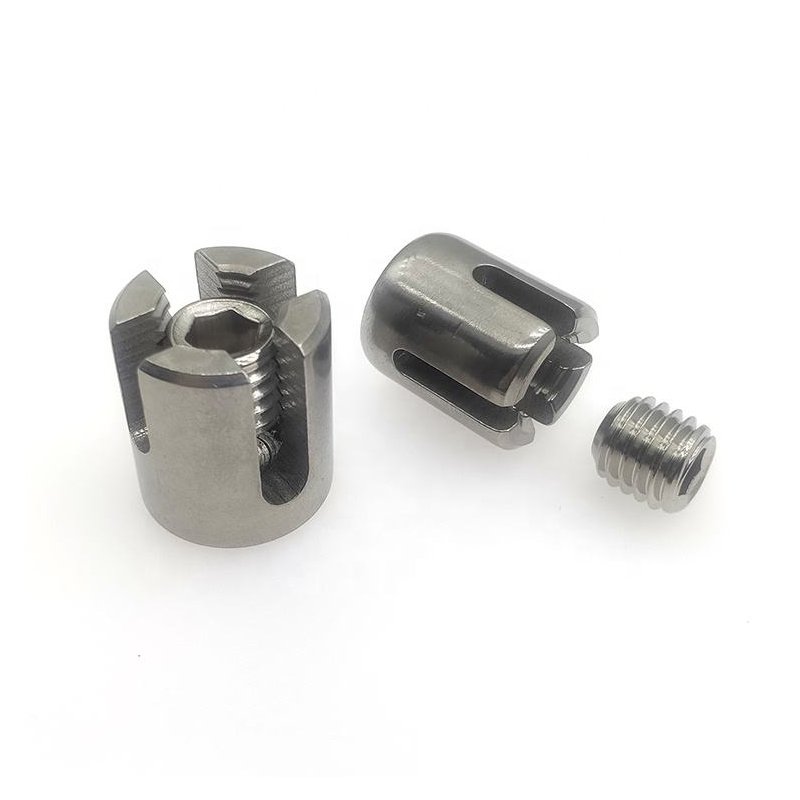

- Simplex & Duplex Clips: Compact designs used primarily for thin cables in architectural or decorative rigging.
2. High-Grade Materials & Corrosion Protection
Our clips are built to survive harsh environments:

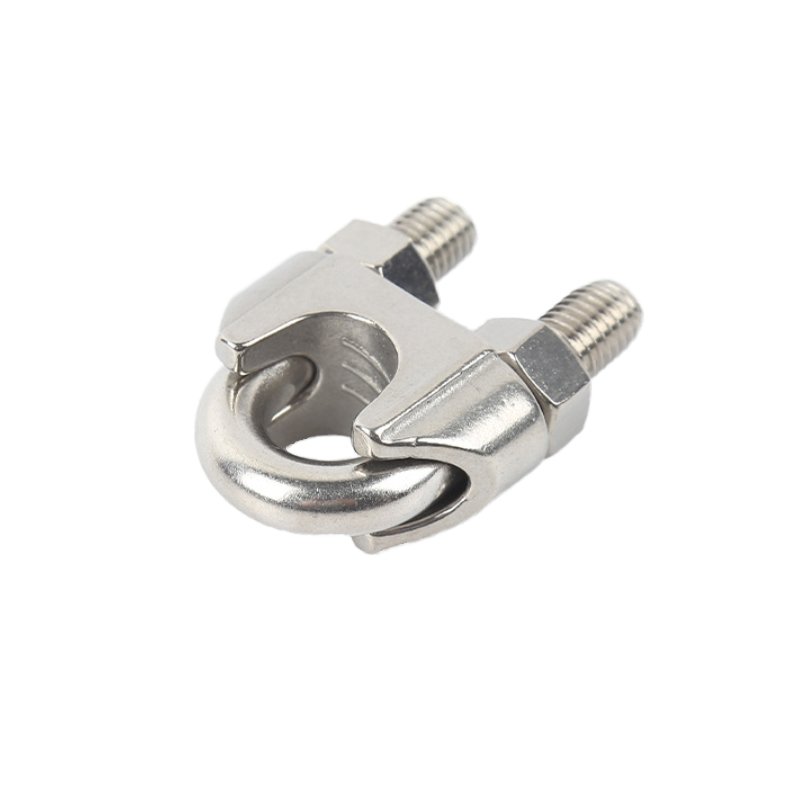

- Stainless Steel 316: Specifically recommended for marine environments where saltwater corrosion is a constant threat.
- Hot Dipped Galvanized: Provides a thick layer of zinc protection for outdoor construction and utility use.
3. Wire Rope Clip Dimensions & Specifications
| Size (mm/in) | Standard | Material | Min. No. of Clips |
|---|---|---|---|
| 6mm (1/4″) | DIN 741 | SS316 / Malleable | 2 |
| 10mm (3/8″) | US Type | Forged Carbon Steel | 3 |
| 16mm (5/8″) | DIN 1142 | Galvanized Steel | 4 |
| 25mm+ (1″+) | US Type | Heavy Duty Forged | 5+ |
Frequently Asked Questions (FAQ)

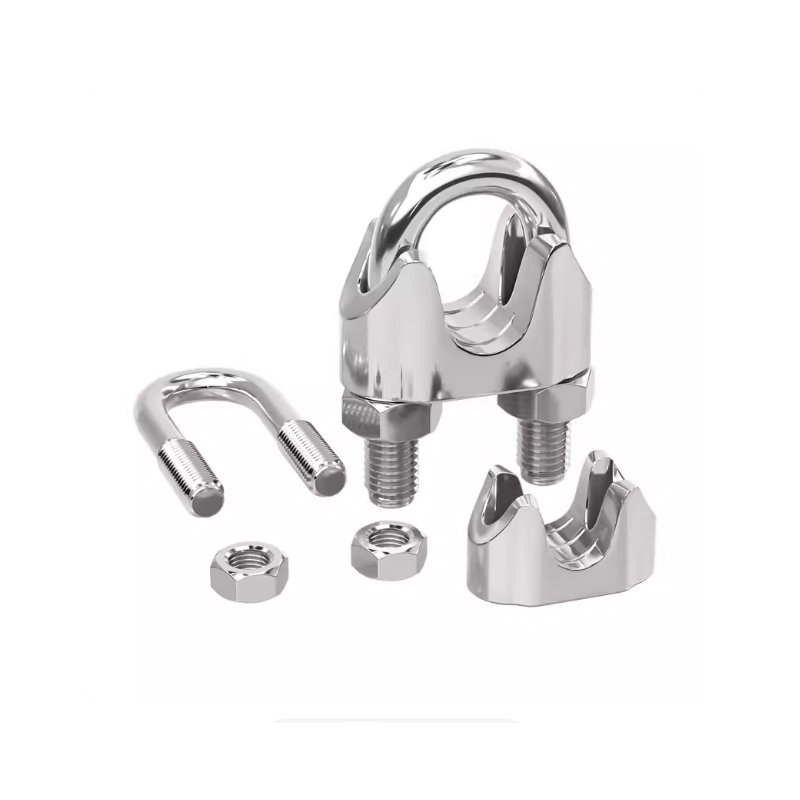

Q: How do I correctly install a U-bolt wire rope clip?
A: Always remember the golden rule: “Never saddle a dead horse.” The saddle must be placed on the live end (load-bearing end) of the rope, while the U-bolt goes over the dead end.
Q: What is the difference between Malleable and Forged clips?
A: Forged clips are much stronger and can be used for critical loads and overhead lifting. Malleable clips are for non-critical, light-duty uses only.
Q: Do these clips meet safety standards for lifting?
A: Our US Type forged clips meet Federal Specification FF-C-450, making them suitable for many industrial lifting and rigging applications when installed correctly.
