Precision Semi-Tubular Rivets for High-Efficiency Assembly
Our Semi-Tubular Rivets are the industry standard for creating strong, permanent, and pivot-capable joints. The hole at the end of the shank allows the rivet to be set using a riveting machine or hand tool, which “rolls” the edge over to create a secure clinch. This process is much faster and requires less pressure than solid riveting, protecting the surrounding materials from damage.

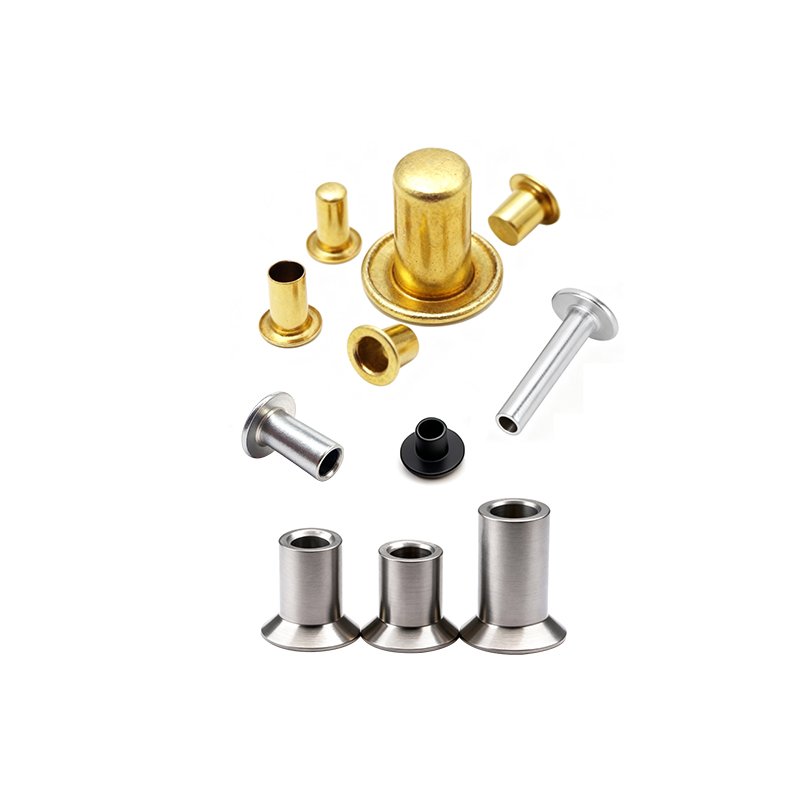

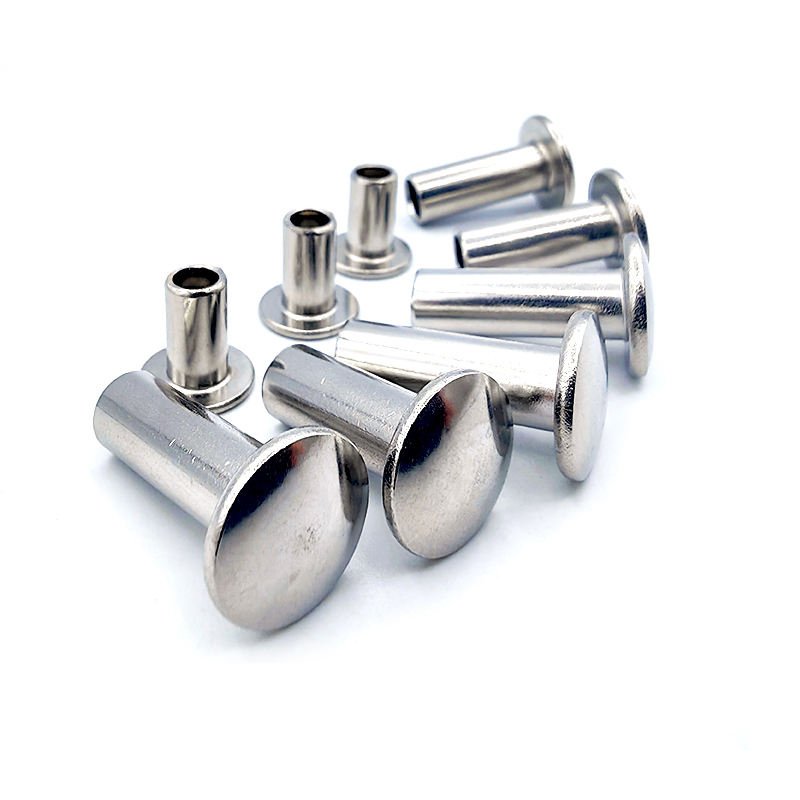

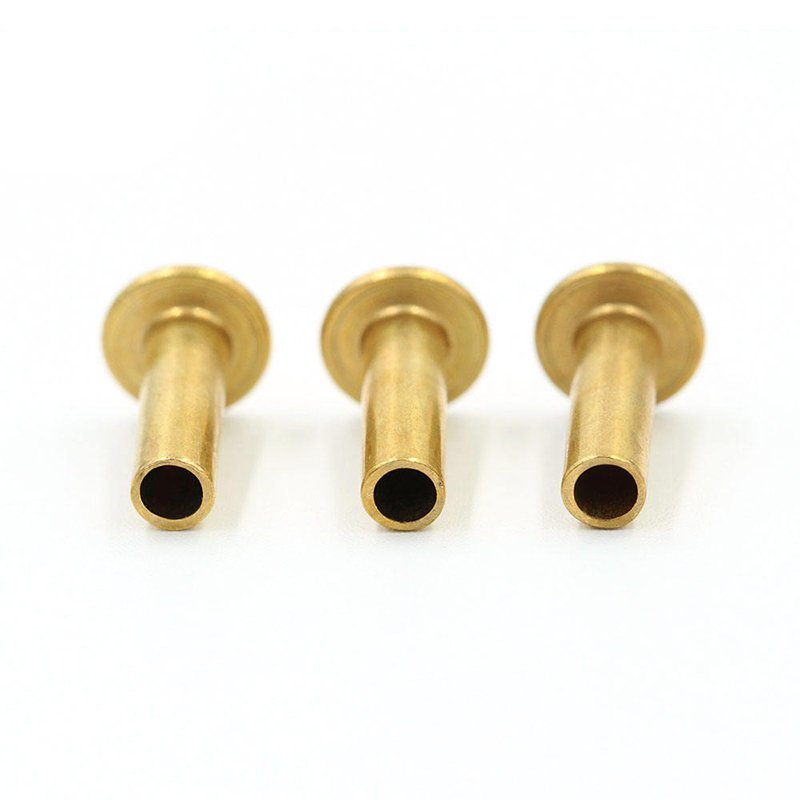

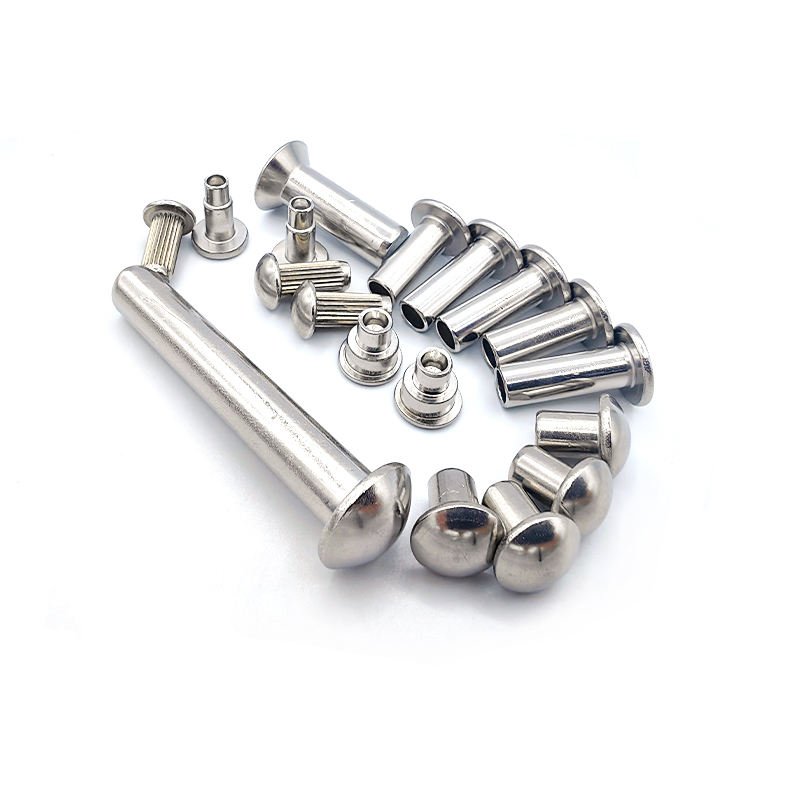

We provide Custom Tubular Rivets in high-grade Brass, Copper, and Steel to meet the specific requirements of the automotive and electrical industries.

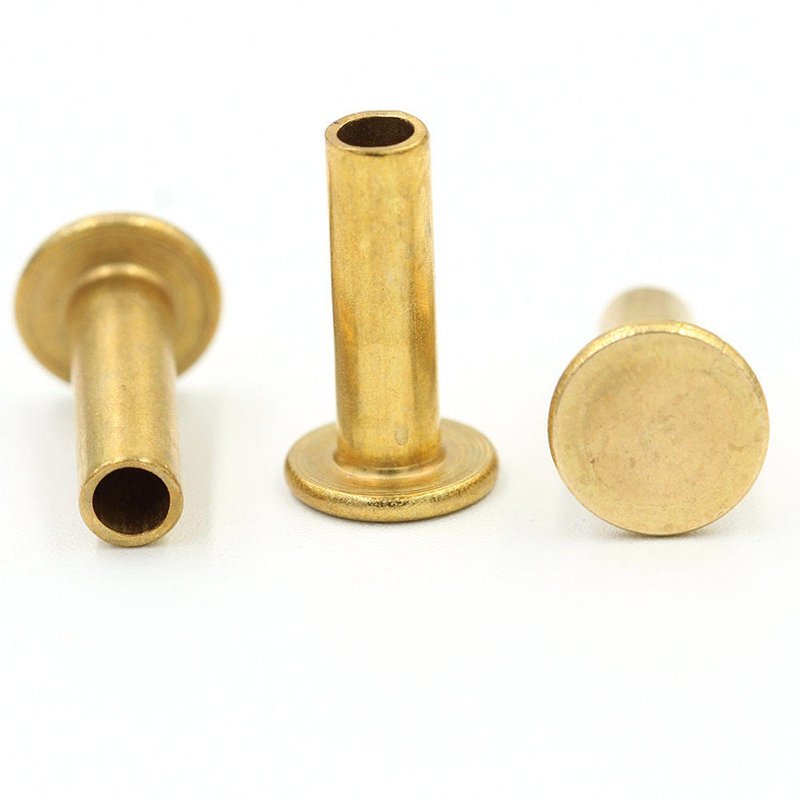

- Semi-Tubular Rivets: Feature a partial hole at the tip. Ideal for pivot points or high-strength industrial assemblies.

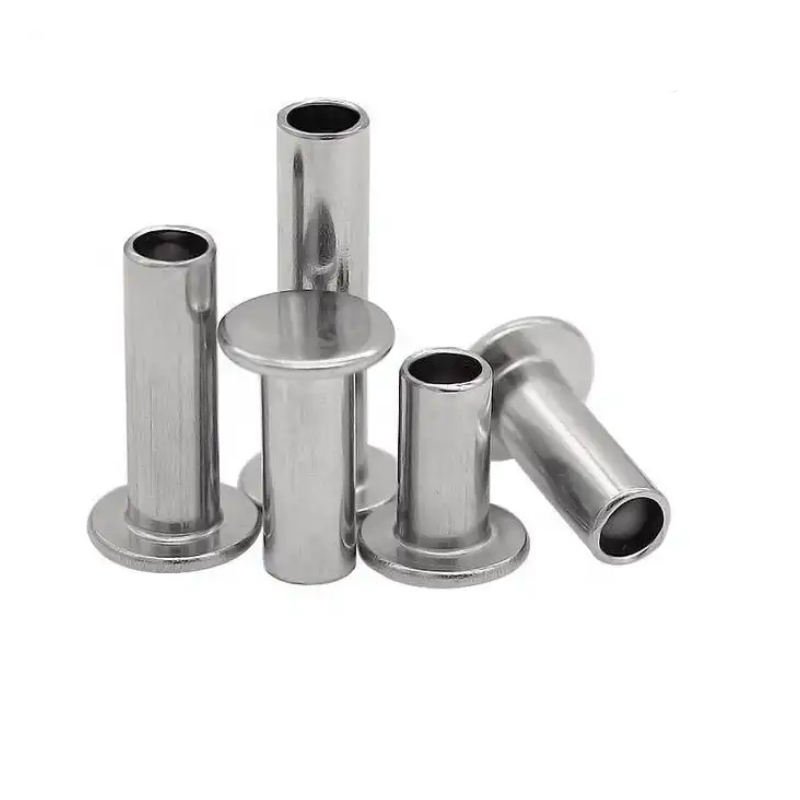

- Full Tubular Rivets: The hole extends through the entire shank. Used for piercing soft materials like leather, fabric, or thin plastics.
- Bifurcated (Split) Rivets: Have a split shank that “peels” back to create a large bearing surface in wood or soft materials.
| Shank Dia. | Head Dia. (Oval) | Hole Depth | Best Material Use |
|---|---|---|---|
| M2.0 – M3.0 | 3.5 – 5.5 mm | Shallow | Electronics, Toys |
| M4.0 – M5.0 | 7.0 – 9.0 mm | Medium | Automotive, Hardware |
| M6.0 – M8.0 | 10.5 – 14.0 mm | Deep | Brake Linings, Ladders |
| Custom M10+ | Custom | Custom | Heavy Machinery |
- Automotive: Brake linings, clutch plates, and seat belt assemblies.
- Electrical: Circuit breakers, switches, and terminal connections.
- Consumer Goods: Luggage handles, clipboards, folding chairs, and strollers.
- Footwear & Leather: Eyelets, decorative studs, and permanent leather joins.
Wholesale & Custom Tubular Rivets
Need Brass-plated tubular rivets for leatherwork or high-strength steel semi-tubular rivets for automotive parts? We offer massive stock and custom manufacturing with fast lead times. Contact us today for a free quote and technical support!
